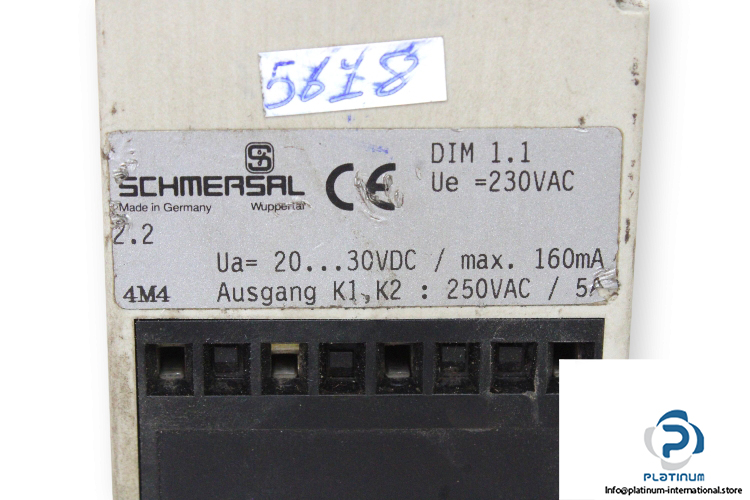

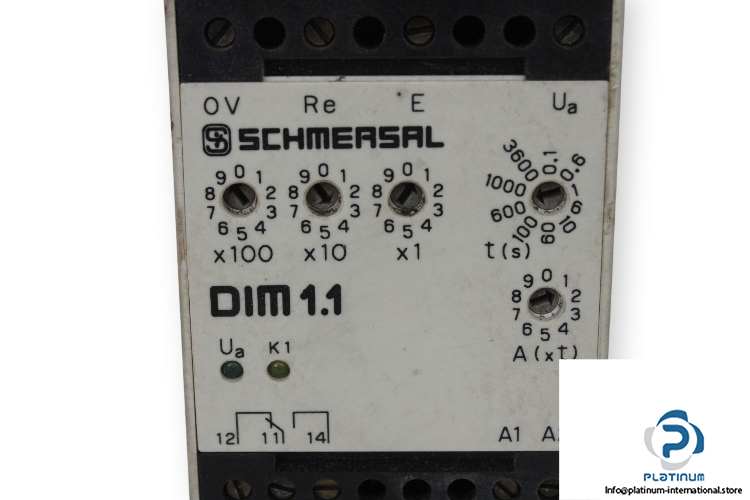

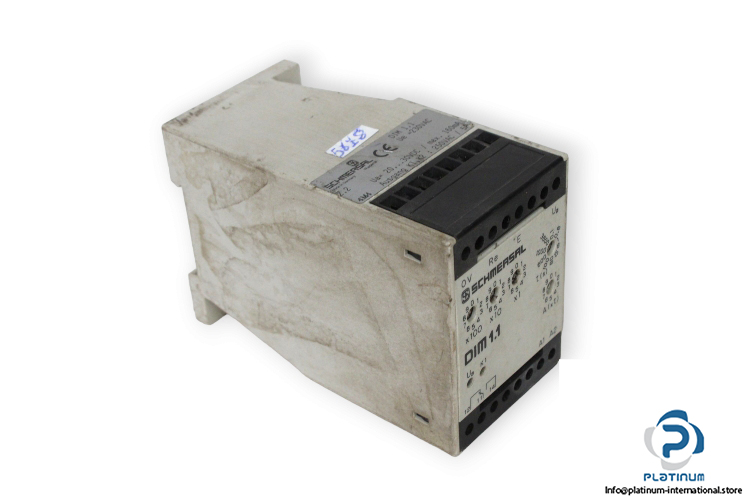

Schmersal DIM 1.1/230 VAC Motion Control Monitor

Manufacturer: SCHMERSAL
Type: Motion Control Monitor
Model: DIM 1.1/230 VAC

Housing: Fibreglass reinforced thermoplastic
Mounting: Two holes according to DIN 43660 or rail mounting complying to DIN EN 50022
Connections: Screw terminals, max. 4 mm2 (including conductor ferrules)
Degree of protection: Terminals IP 20; housing IP 40
Setting range: 1 pulse/h…9,990 pulses/s (four rotary micro switches)
Standard time (t): 0.1 s; 0.6 s; 1 s; 6 s; 10 s; 60 s; 100 s; 600 s; 1.000 s; 3.600 s
Start-up delay (A): 0 . . . 9 x time (t)
Hysteresis: ± 1% from the preset switching point
Operating voltage (Ue): 230 VAC
Frequency range: 50 . . . 60 Hz
Auxiliary voltage (Ua): 20 V . . . 30 VDC smoothened and unregulated at 115 V / 230 VAC
Max. output current (Ia): 160 mA
Ambient temperature: 0° . . . 60° C
Dimensions (L x W x H): 75 mm x 55 mm x 110 mm
