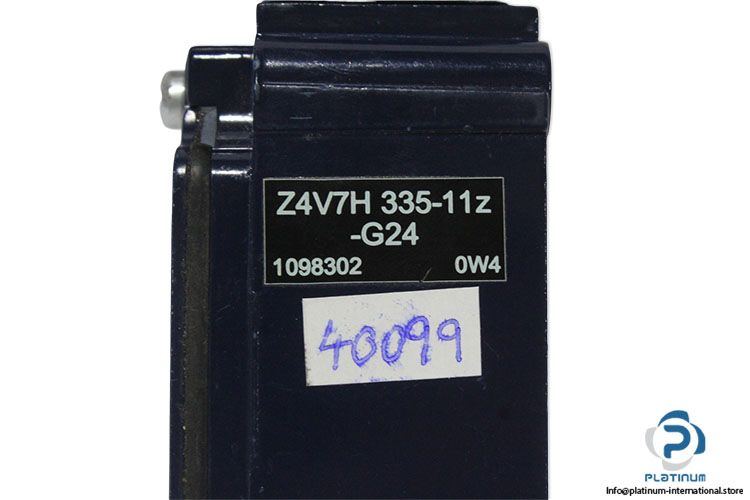

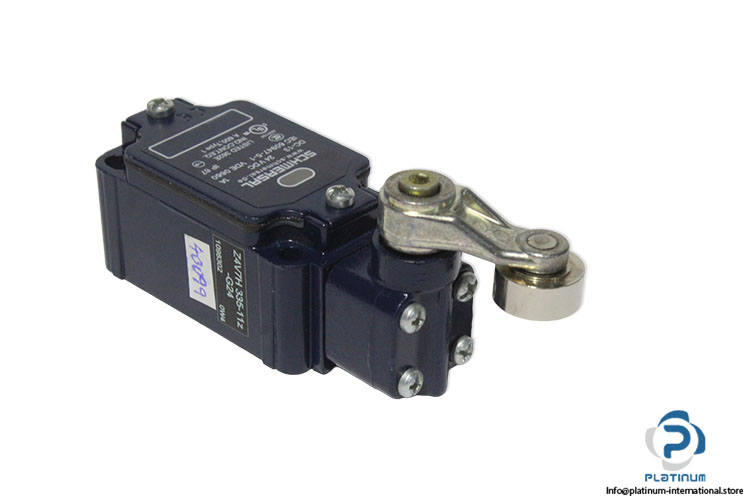

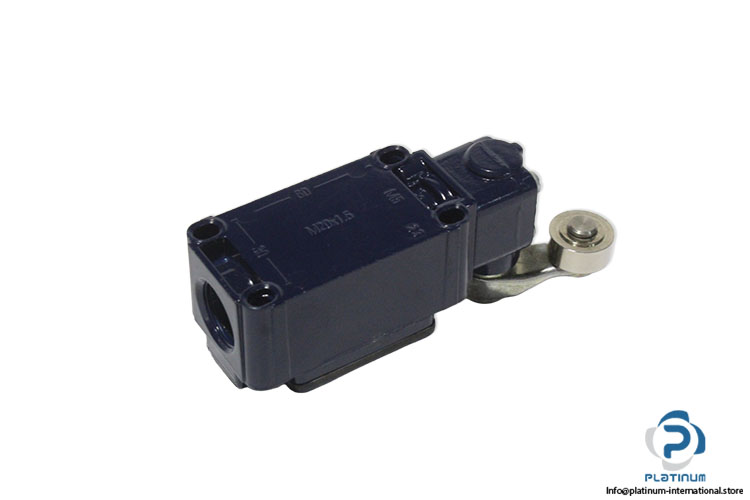

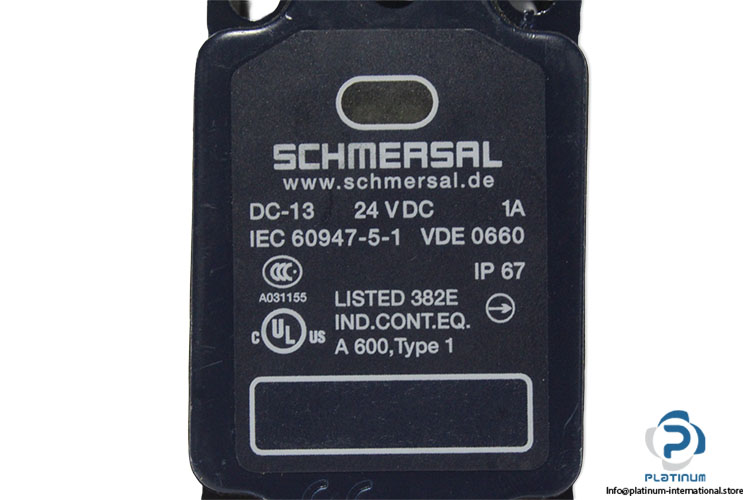

Schmersal Z4V7H 335-11Z-G24 Roller Lever Limit Switch
Used
In stock1 unitReady to ship
Roller Lever Limit Switch The Schmersal Z4V7H 335-11Z-G24 is a 24 V DC roller lever limit switch with NO/NC contacts, metal housing and IP67 protection for industrial automation.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1098302 |
| Rated Voltage | 24 V DC |
| Rated Current | 1 A |
| Thermal Test Current | 10 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 500 V |
| Contact | 1 Normally Open (NO) + Normally Closed (NC) |
| Actuating Element | Roller Lever |
| Actuator Heads Position | 4 x 90° |
| Material | Metal |
| Protection Class | IP67 |
| Ambient Temperature | -30 … 80 °C |
| Dimensions | 40,5 x 76 x 38 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103921 |
| Weight | 0,28 |
