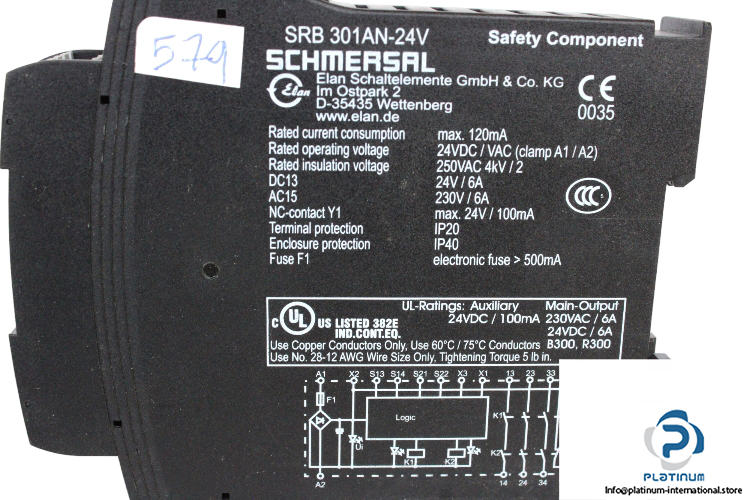

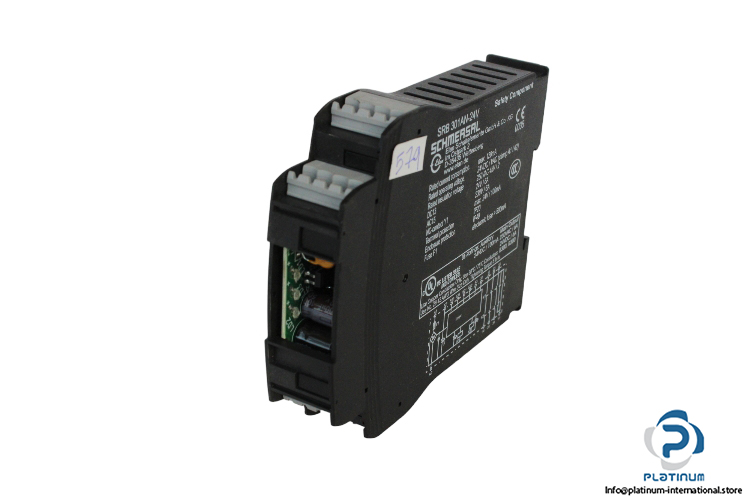

Schmersal SRB 301AN-24V Safety Monitoring Module
Used
In stock1 unitReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schmersal
Type: Safety Monitoring Module
Model: SRB 301AN-24V
Features:
- Suitable for the signal processing of outputs with contact sensors
- 3 safety contacts, STOP 0
- 1 Signalling output
Rated Current Consumption: max. 120 mA
Rated Operating Consumption: 24 VDC/VAC
Rated impulse withstand voltage Uimp: 4 kV
Rated Insulation Voltage: 250 V AC
Outputs
DC-13: 24 V DC/6 A
AC-15: 230 V AC/6A
NC-contact y1: max.24 V/100 mA
Fuse: 500 mA
Degree of protection of terminals: IP20
Degree of protection of enclosure: IP40
Temperature Range: -25 … 60°C
Dimensions: 22.5 x 100 x 121 mm
