Schmitt MPN 115 PUMP
Used
In stock2 unitsReady to ship

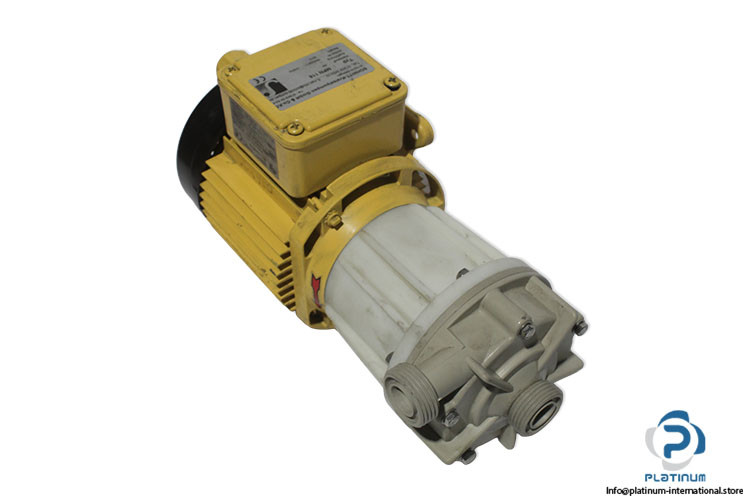

Pump The SCHMITT MPN 115 is a hermetically sealed industrial pump with polypropylene construction, designed for reliable fluid transfer and continuous-duty operation in industrial process applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | MPN |

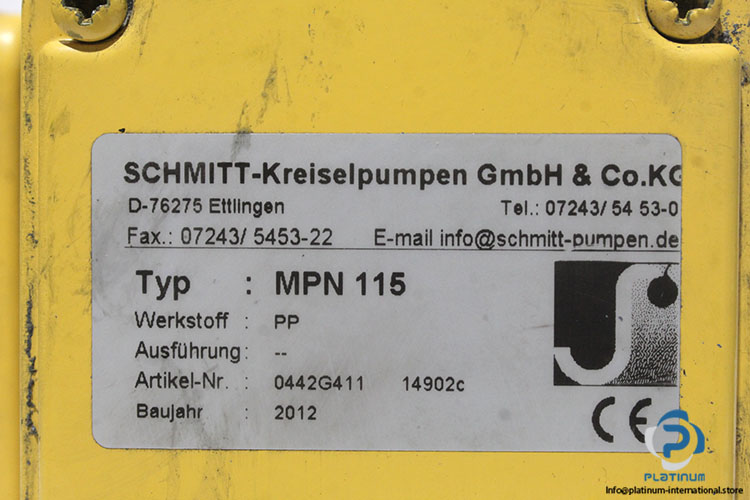

| Artikel-Nr. | 0442G411 14902c |
| Size | 115 |
| Material | PP |
| Maximum Flow Rate | 35 m³/h |
| Maximum Discharge Head | 32 m |
| Port size | G1 |
| DN | 15 |
| construction Type | Hermetically sealed |

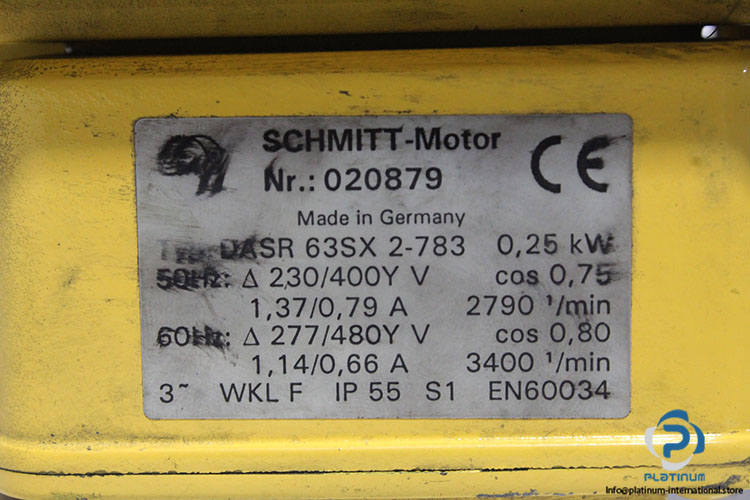

| Attached Motor | SCHMITT DASR 63SX 2-783 Motor |
| Part Nr . | 020879 |
| Standards | EN60034 |
| Voltage At Frequency 50 Hz | 230V Delta (?) / 400V Wye (Y) |
| Current At Frequency 50 Hz | 1.37 (?) / 0.79 (Y) |
| Power Factor At Frequency 50 Hz | 0.75 |
| Rotational Speed At Frequency 50 Hz | 2790 RPM (1/min) |
| Voltage At Frequency 60 Hz | 277V Delta (?) / 480V Wye (Y) |
| Current At Frequency 60 Hz | 1.14 (?) / 0.66 (Y) |
| Power Factor At Frequency 60 Hz | 0.80 |
| Rotational Speed At Frequency 60 Hz | 3400 RPM (1/min) |
| Protection class | ip55 |
| duty | s1 |
| Connection | terminal box |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100553 |
| Weight | 5,55 |
