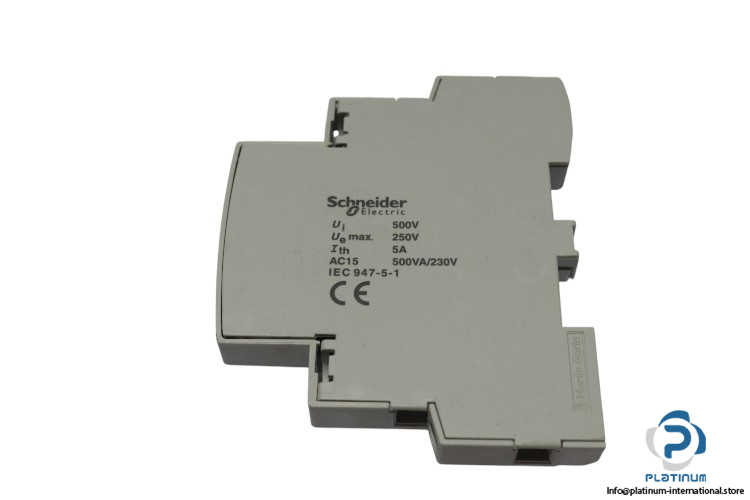

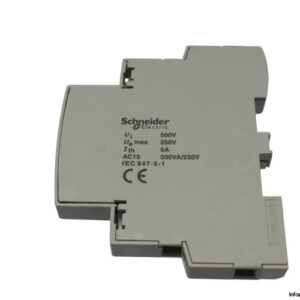

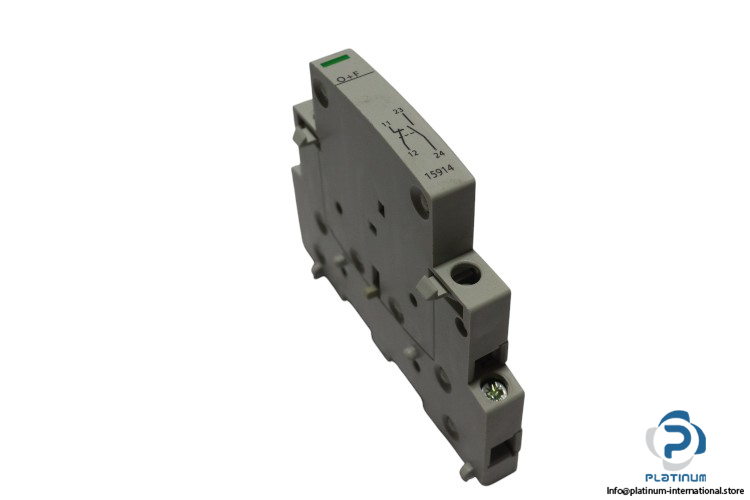

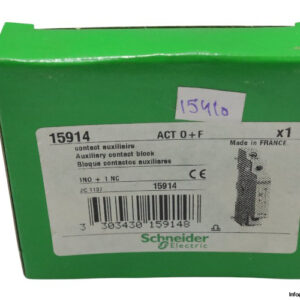

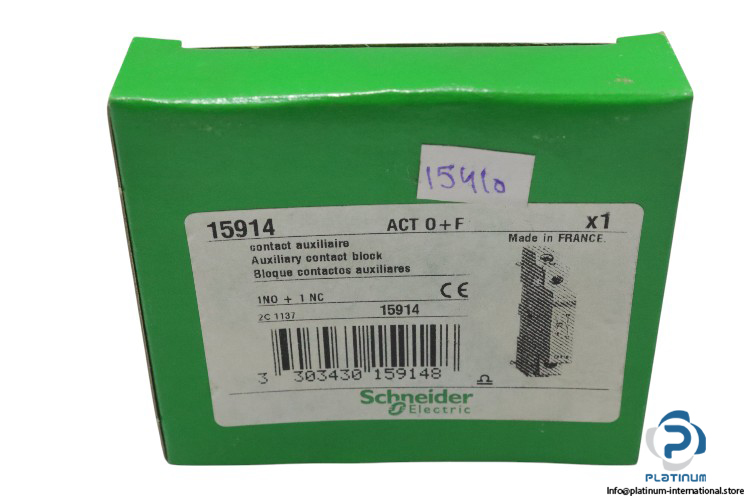

Schneider 15914 Remote Indication Auxiliary

Schneider 15914 Remote Indication Auxiliary

The Schneider 15914 is a remote indication auxiliary designed for use with the Multi9 CT range, offering real-time signaling of circuit breaker status in industrial and commercial electrical installations. It features one normally open (NO) and one normally closed (NC) contact for flexible signaling configurations. This compact module supports various AC and DC voltage levels and is DIN rail mountable to the right side of CT circuit breakers. With its reliable operation across a wide temperature range and compact design, it is ideal for integration into control panels and automation systems.

• Manufacturer: Schneider
• Type: Remote Indication Auxiliary
• Model: 15914

Technical Specifications:

• Range of Product: CT
• Product Range: Multi9
• Signal Contacts Composition: 1 NO + 1 NC
• Signalling Circuit Voltage:
  • 130 V DC: 1 A
  • 240 V AC (50/60 Hz): 2 A
  • 24 V DC: 10 mA
  • 24 V AC: 10 mA
• Mounting Mode: Fixed, on the right of CT
• Mounting Support: 35 mm symmetrical DIN rail
• Ambient Temperature: -20 to +50 °C
• Dimensions (H x W x D): 81 x 9 x 60 mm

Applications:

• Remote signaling of circuit breaker status
• Control panel and automation system integration
• Commercial and industrial electrical installations
