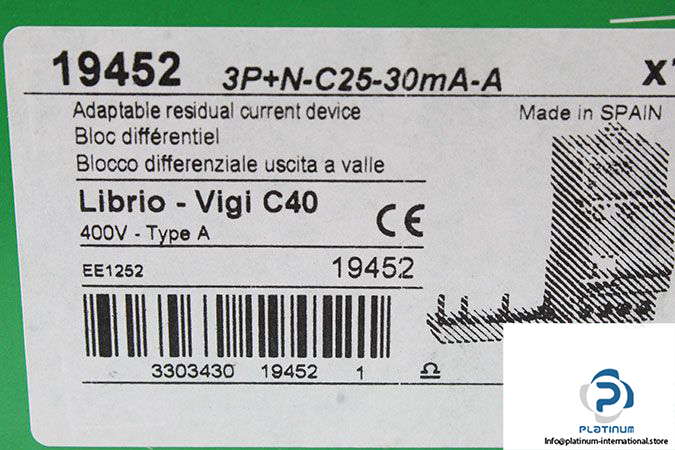

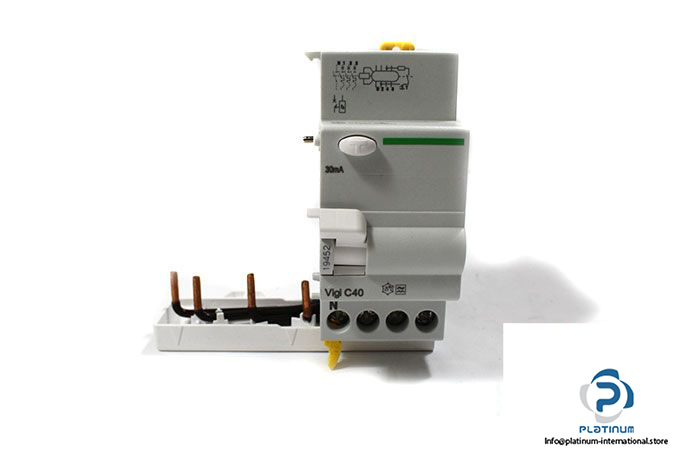

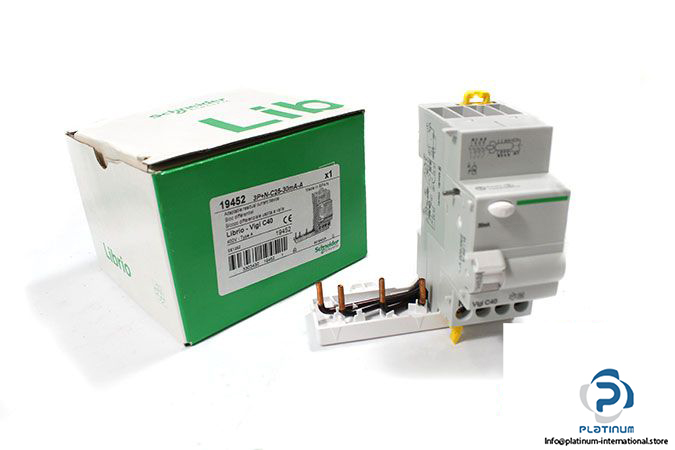

Schneider 19452 Single Differential Lock Part

Manufacturer: SCHNEIDER ELECTRIC

Type: Single Differential Lock Part

Model: 19452

Rated Current: 25 A

Device name: Vigi C40

type of differential protection: A

Number of poles: 3P + N

Grid frequency: 50 Hz

Rated operational voltage: 400 V AC,  phase to phase

differential sensitivity: 30 mA

Tightening torque: 2 Nm

Rated impulse withstand voltage: 4 kV

Dimensions ( height x width x depth ): 82 x 36 x 70 mm

Operating Temperature: -25 … 60 ° C

Weight: 0.22 kg
