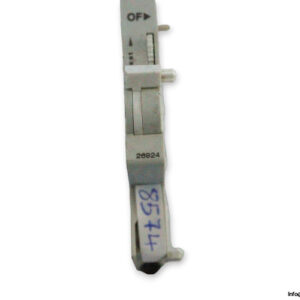

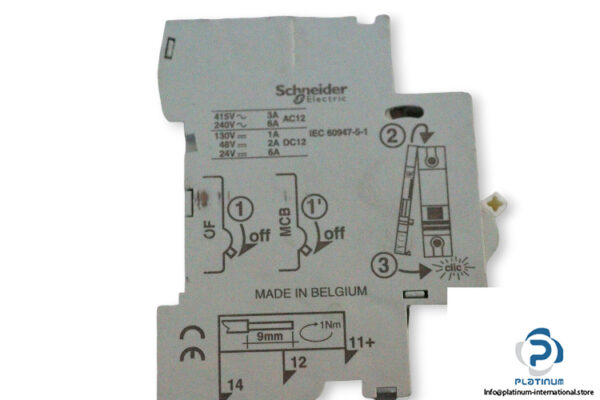

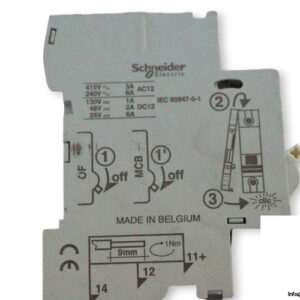

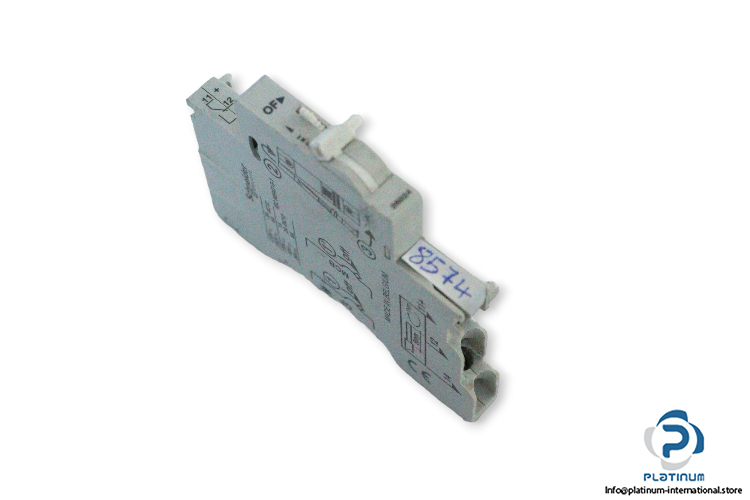

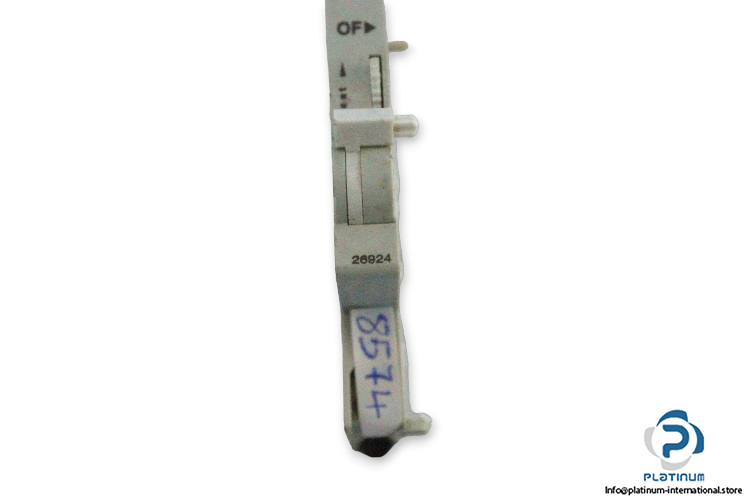

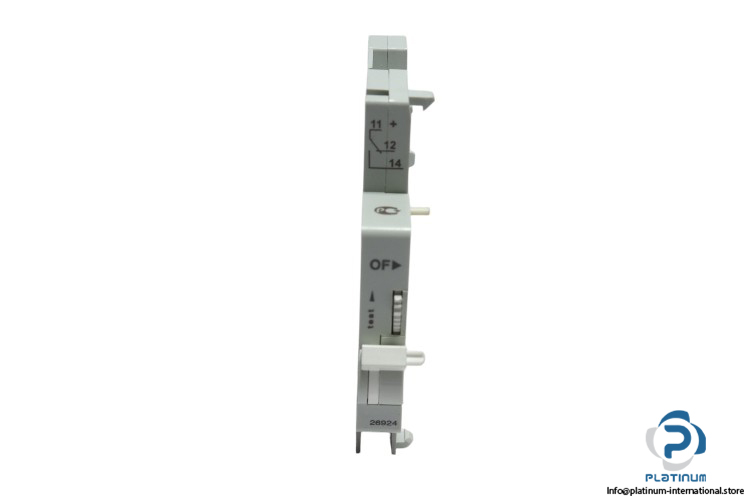

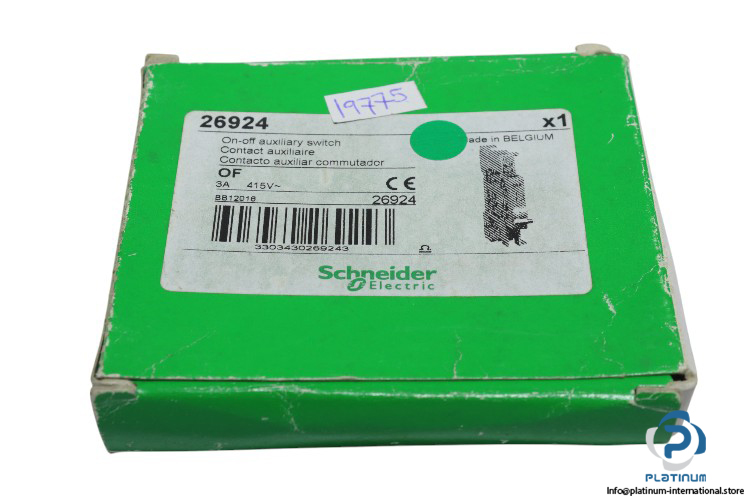

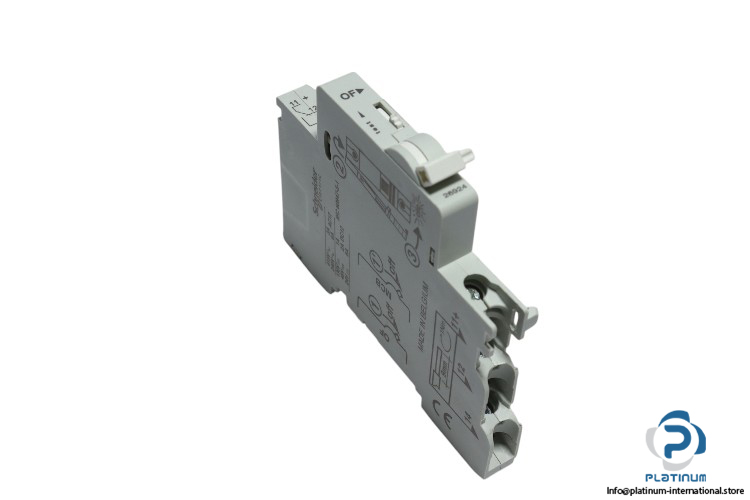

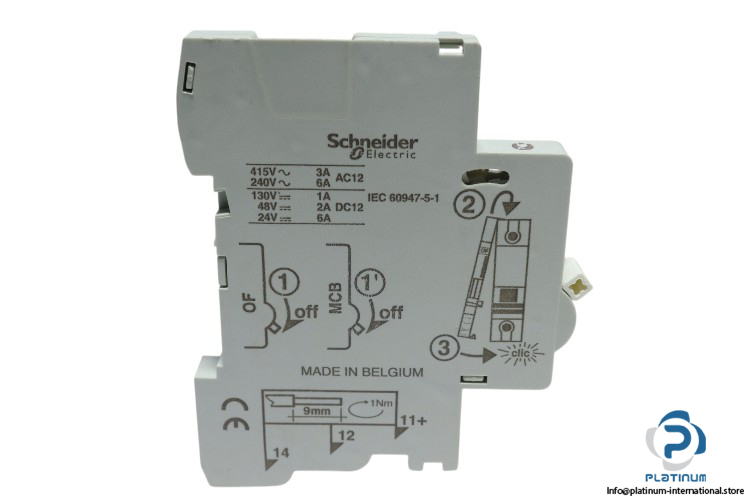

Schneider 26924 Auxiliary Contact Block
Schneider Auxiliary Contact Block 26924
The Schneider Auxiliary Contact Block 26924 is a reliable switching solution with 1 C/O contact. It supports AC and DC circuits with rated currents up to 6 A and features IP20 protection and DIN rail mounting for ease of installation.Schneider Auxiliary Contact Block 26924
The Schneider Auxiliary Contact Block 26924 is a high-quality component designed for use in electrical control and protection circuits. It provides a reliable switching solution with a wide range of contact configurations, offering durability and flexibility in demanding environments.
With a rated current of up to 6 A in AC applications and 2 A in DC, this auxiliary contact block supports both AC and DC circuits, ensuring compatibility with various systems. The unit is designed to be mounted on DIN rails for easy integration and offers a degree of protection of IP20, making it suitable for industrial applications where space and durability are essential.
Manufacturer: Schneider
Type: Auxiliary Contact Block
Model: 26924
Rated Current In:
Reliable and easy to install, the Schneider Auxiliary Contact Block 26924 is an ideal choice for enhancing the control and protection of electrical systems in various industrial and commercial applications.
| Signal Contacts Composition | 1 C/O |
| Device Short Name | OF |
| AC-12 | 3 A at 380“415 V, AC 50/60 Hz |
| AC-12 | 6 A at 220“240 V, AC 50/60 Hz |
| DC-12 | 1 A at 130 V, DC |
| DC-12 | 1.5 A at 60 V, DC |
| DC-12 | 2 A at 48 V, DC |
| DC-12 | 6 A at 24 V, DC |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Tightening Torque | 1 N.m |
| Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -25°C to 50°C |
| Dimensions | 84 x 9 x 73 mm |
