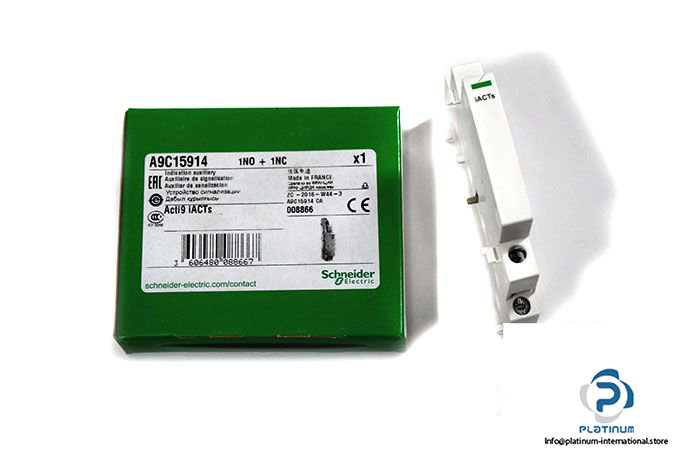

Schneider A9C15914 Remote Indication Auxiliary

Manufacturer: SCHNEIDER ELECTRIC

Type: REMOTE INDICATION AUXILIARY

Model: A9C15914

Range Of Product: ICT

Range: Acti 9

Control Circuit Voltage:

24 … 240 V AC

24 … 130 V DC

Frequency: 50/60 Hz

Rated Insulation Voltage: 440 V

Rated Impulse Withstand Voltage: 4 kV

Mounting Mode: Fixed, on the right of CT

Tightening Torque: 0.8 N.m

Dimensions ( Height x Width x Depth ): 81 x 9 x 68 mm

IP degree of protection: IP20

Weight: 0.040 kg
