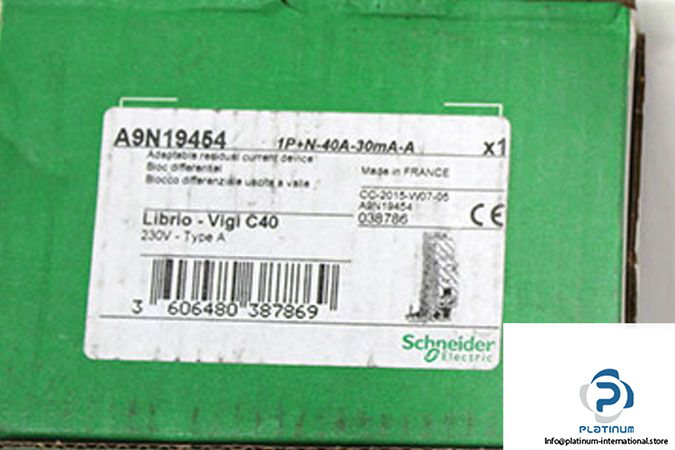

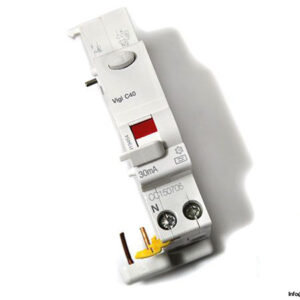

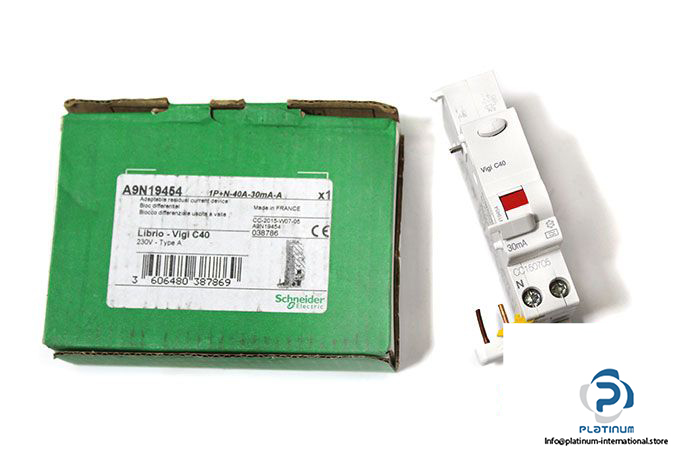

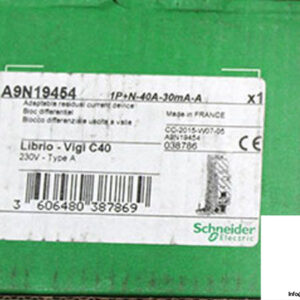

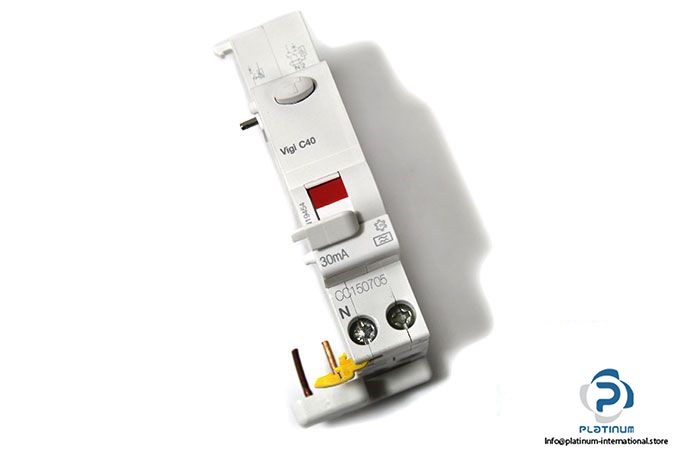

Schneider A9N19454 Single Differential Lock Part

Manufacturer: SCHNEIDER ELECTRIC

Type: SINGLE DIFFERENTIAL LOCK PART

Model: A9N19454

Application: Suitable For Residential And Tertiary Applications

Type of differential protection: A

Device name: Vigi C40

Rated Voltage: 230 V AC from phase to neutral

Rated current: 40 A

NO. Of Poles: 1P + N

neutral position: Left

Grid Frequency: 50 Hz

differential sensitivity: 30 mA

Impulse Withstand Voltage Uimp: 4 kV

Tightening Torque: 2 Nm

Connection:

Downstream cable0.75… 16 mm² rigid

Downstream cable0.33… 10 mm² flexible

Operating temperature: -25 … 60 ° C

Weight: 0.08 kg
