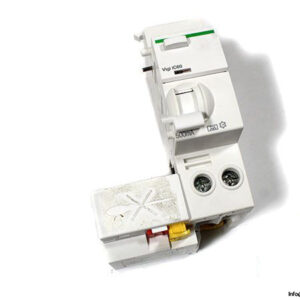

Schneider A9Q26225 Earth Leakage ADD-ON Block

Manufacturer: SCHNEIDER ELECTRIC

Type: Earth Leakage Add-On Block

Model: A9Q26225

Rated Current: 25 A

Rated Operational Voltage:

230/400 V AC, conforming to EN 61009-1

230/415 V AC, conforming to IEC 61009-1

Device Short Name: V60 C60

No of Poles: 2P

Earth-Leakage Sensitivity: 500 mA

Earth leakage protection type: Type A

mounting mode: Clip-on

product compatibility: Single terminal

Range compatibility:

Acti 9 iC60

Acti 9 Reflex iC60

Tightening torque: 2 N.m bottom

Rated Insulation Voltage: 500 V AC

Dimensions ( height x width x depth ): 91 x 27 x 73.5 mm

Frequency: 50/60 Hz

Operating Temperature: -25…60 °C

Weight: 0.16 kg
