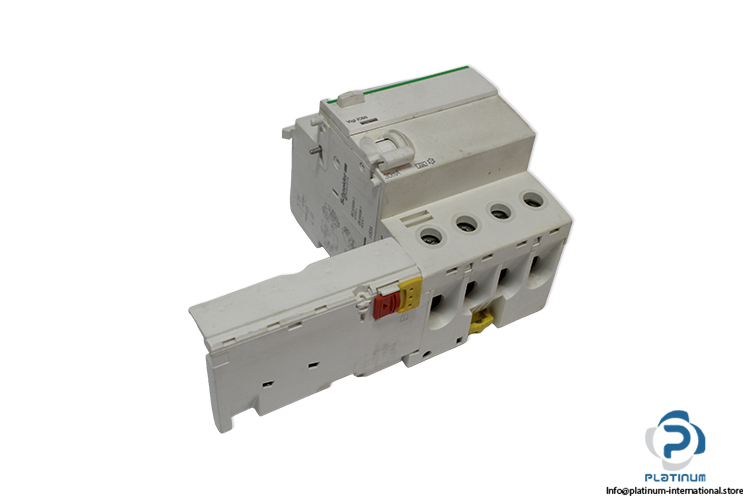

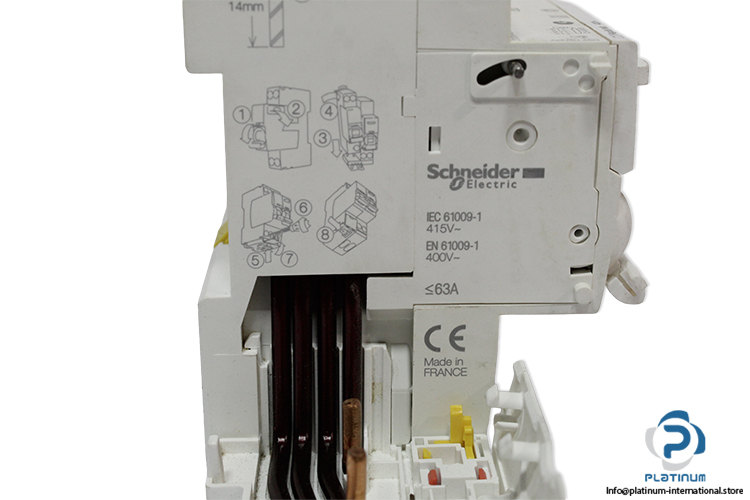

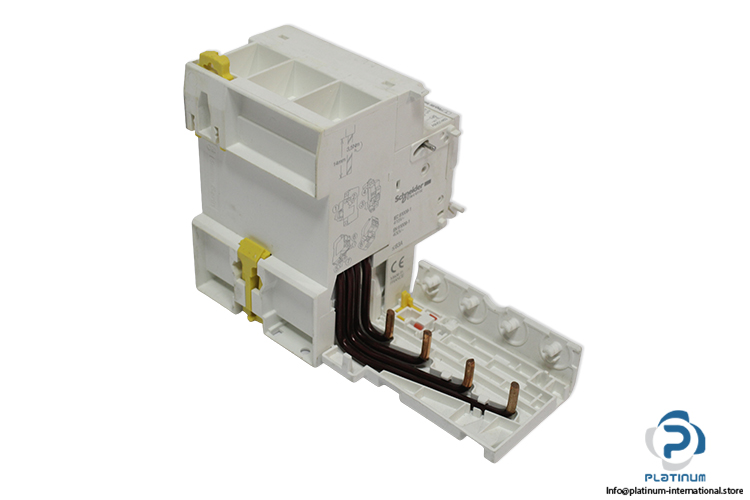

SCHNEIDER A9V51463 Earth Leakage Add-On Block
The SCHNEIDER A9V51463 is an Acti9 add-on residual current device designed to provide reliable earth-leakage protection in low-voltage distribution systems. Engineered for compatibility with Acti9 iC60 series devices, this unit ensures safe operation and fast response in AC networks.
Manufacturer: SCHNEIDER
Type: Earth Leakage Add-On Block
Model: A9V51463

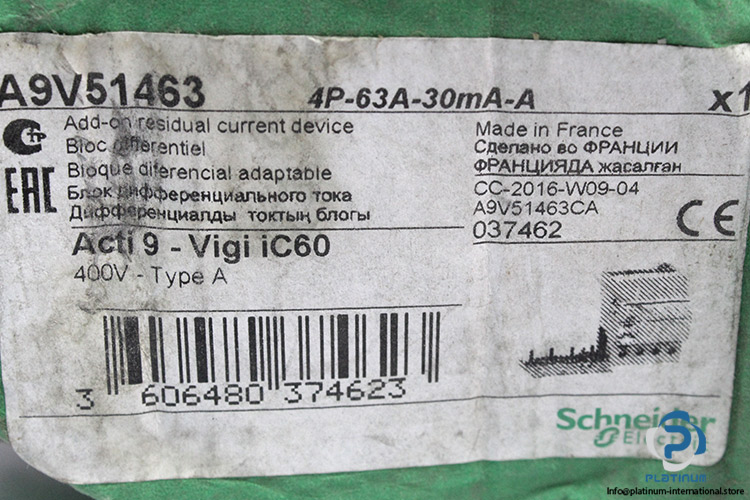

Code: 037462 / A9V51463CA
Serial Number: 3606480374623
Range: Acti9

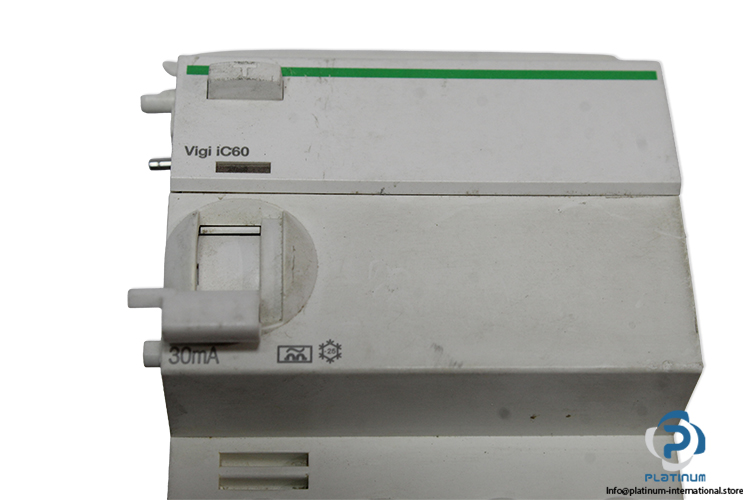

Device Short Name: Vigi iC60
| Product Or Component Type | Add-On Residual Current Devices |
| Poles Description | 4P |
| Rated Current (In) | 63 A |
| Earth-Leakage Sensitivity | 30 mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Type | Type A |
| Network Type | AC |
| Network Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | 400...415 V AC 50/60 Hz Conforming To EN/IEC 61009-1 |
| Rated Operational Voltage (Ue) | 400...415 V AC 50/60 Hz Conforming To EN/IEC 61009-2-1 |
| Standards | EN/IEC 61009-1, EN/IEC 61009-2-1 |
| 9 mm Pitches | 7 |
| Range Compatibility | Acti 9, Acti9 iC60, Acti 9 Reflex iC60 |
| Product Compatibility | Single Terminal |
| Local Signalling | Trip Indicator |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Electrical Connection To MCB | By Screws |
| Comb Busbar And Distribution Block Compatibility | Bottom: YES |
| Height | 91 mm |
| Width | 135 mm |
| Depth | 73.5 mm |
