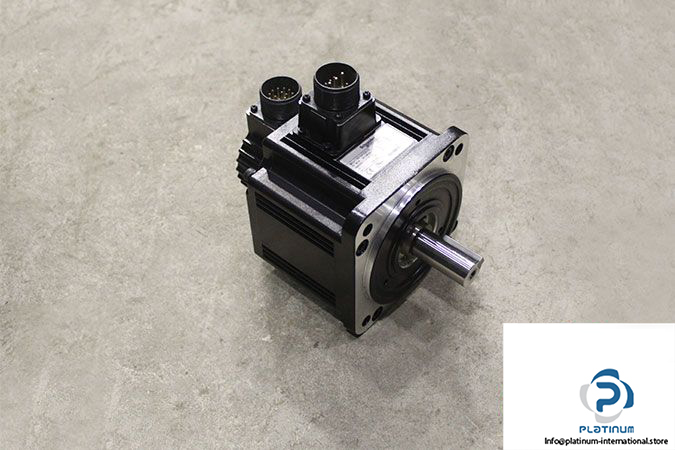

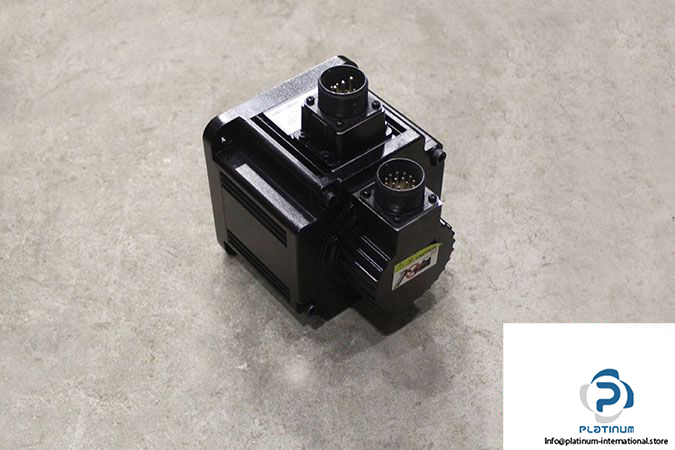

Schneider BCH1301M12A1C AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

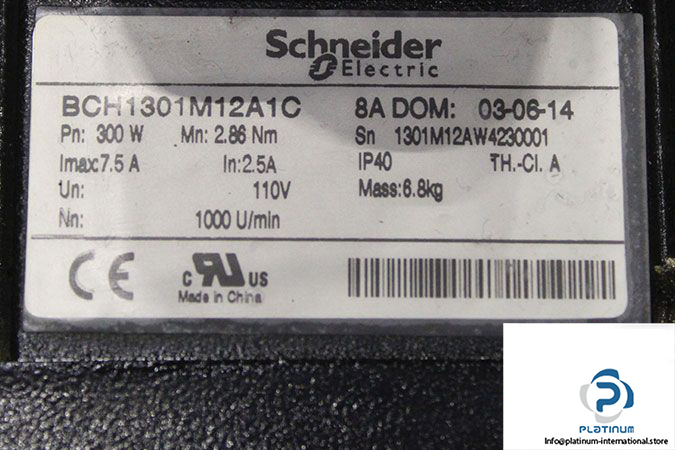

Model: BCH1301M12A1C

Serial No.: 1301M12AW4230001

Rated Torque [Nm]: 2.86

Stall Current [A]: 2.5

Rated Current [A]: 2.5

Max Current [A]: 7.5

Rated Voltage [V]: 110

Rated Power [W]: 300

Rated Speed [rpm]: 1000

Max Speed [rpm]: 2000

Shaft End: Keyed

Shaft Diameter [mm]: 22

Shaft Length [mm]: 47

Key Width [mm]: 8

Protection Class [IP]: 40

Thermal Class: A

Weight [kg]: 6.565
