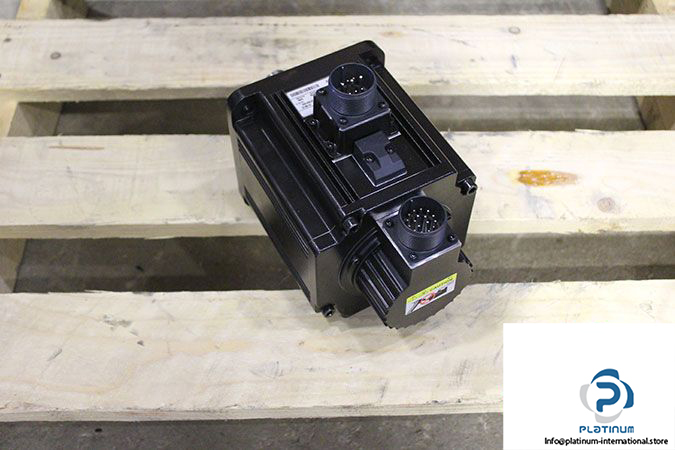

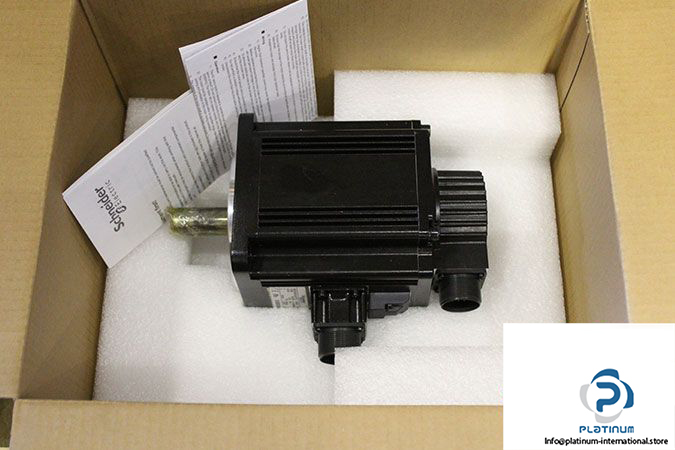

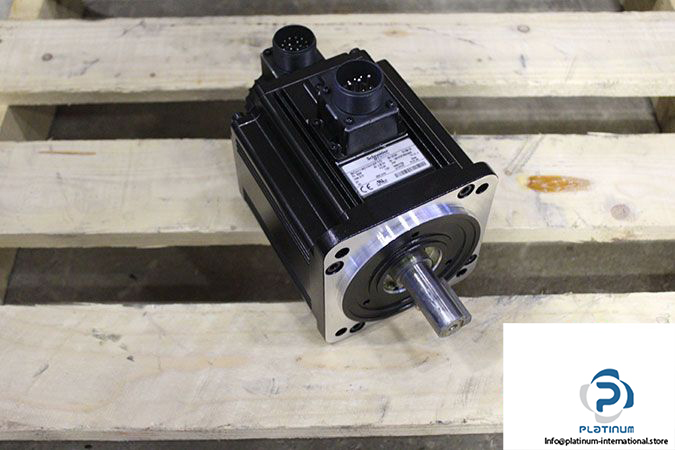

Schneider BCH1301N12F1C AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

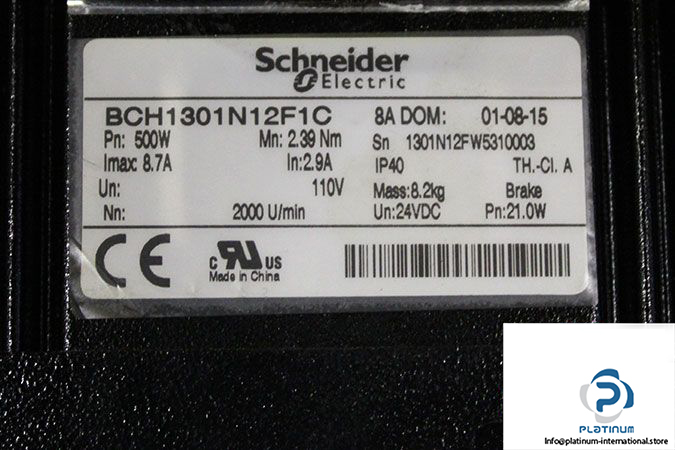

Model: BCH1301N12F1C

Rated Torque [Nm]: 2.39

Stall Current [A]: 2.9

Rated Current [A]: 2.9

Max Current [A]: 8.7

Rated Voltage [V]: 110

Rated Power [W]: 500

Rated Speed [rpm]: 2000

Max Speed [rpm]: 3000

Brake Voltage [VDC]: 24

Brake Power [W]: 21

Holding Torque [Nm]: 10

Shaft End: Keyed

Flange Size [mm]: 130

Shaft Diameter [mm]: 22

Shaft Length [mm]: 47

Key Width [mm]: 8

Ambient Temperature [°C]: 0…40

Protection Class [IP]: 40

Thermal Class: A

Weight [kg]: 8.4
