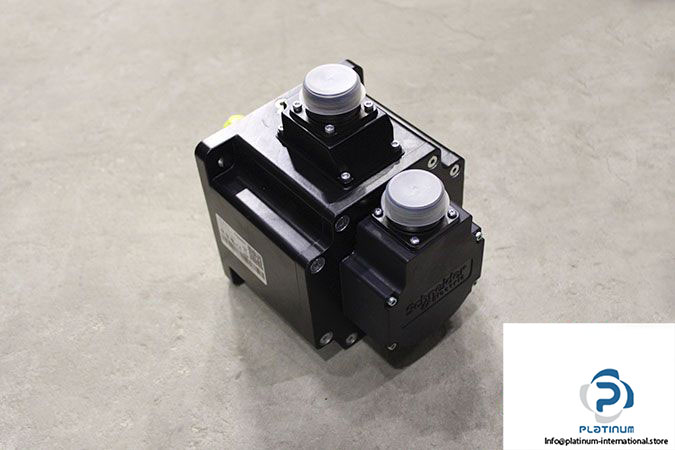

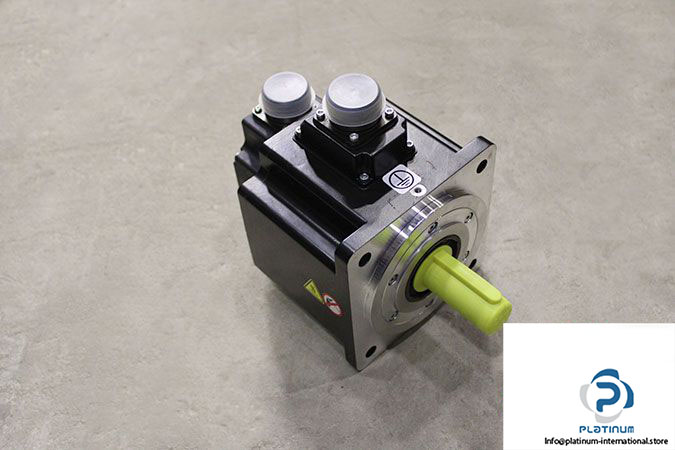

Schneider BCH2MM0313CA6C AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

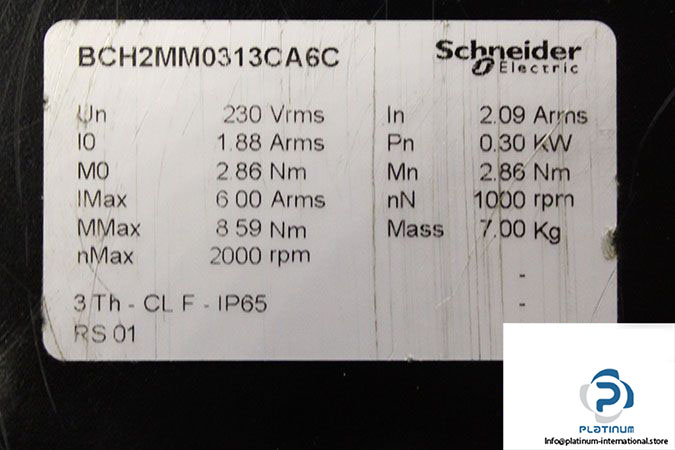

Model: BCH2MM0313CA6C

Stall Torque [Nm]: 2.86

Rated Torque [Nm]: 2.86

Max Torque [Nm]: 8.59

Stall Current [A]: 1.88

Rated Current [A]: 2.09

Max Current [A]: 6.0

Rated Voltage [V]: 230

Rated Power [kW]: 0.3

Rated Speed [rpm]: 1000

Max Speed [rpm]: 2000

Number of Poles:

Shaft End: Keyed

Flange Size [mm]: 130

Shaft Diameter [mm]: 22

Shaft Length [mm]: 45

Key Width [mm]: 8

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 6.76
