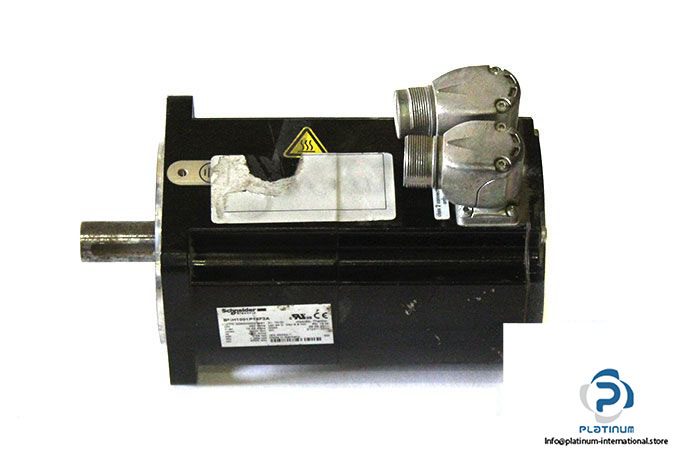

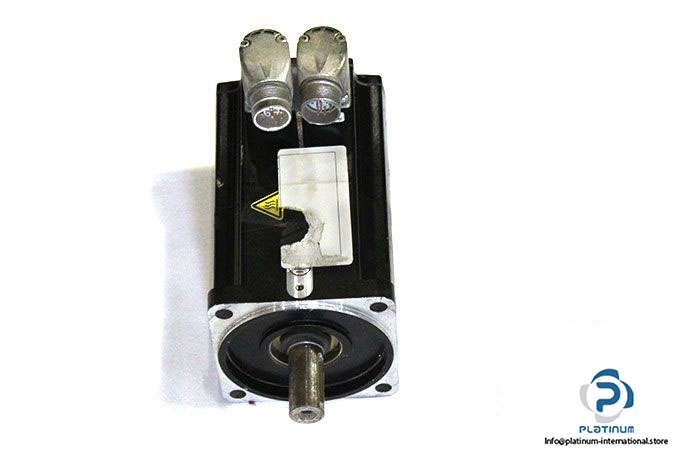

Schneider BMH1001P16F2A Servo Motor

Manufacturer: ELAU – Schneider Electric

Type: Servo Motor

Model: BMH1001P16F2A

ID No: 0050000001481

Rated Voltage: 480 Vrms

Max. Current: 1.68 Arms

Stall Current: 3.15 Arms

Rated Speed: 4000 Revolution Per Minute (rpm)

Max. Speed: 6000 Revolution Per Minute (rpm)

Stall Torque: 3.59 Nm

Rated Power: 1.265 Kw

Number of Motor Poles: 10

Holding Brake: With

Brake Pull-In Voltage: 24 VDC

Brake Pull-In Power: 12 W

Holding Torque: 5.5 Nm

Shaft Diameter: 19 mm

Shaft Length: 40 mm

Motor Flange Size: 100 mm

Protection Class: IP50 (IP65)

Weight: 4.35 kg
