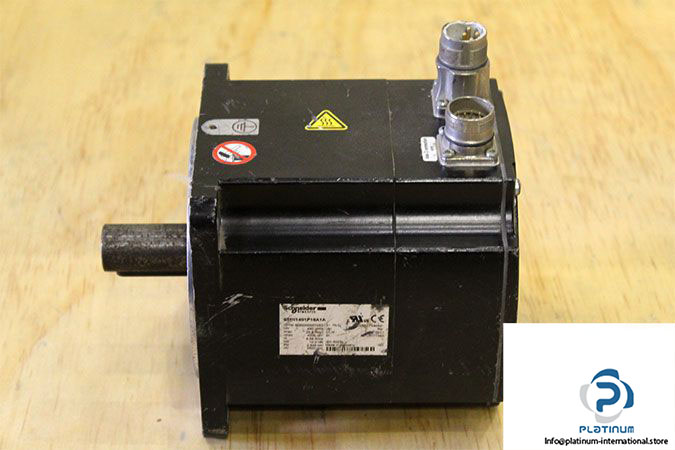

Schneider Electric BMH1401P16A1A Servo Motor
Manufacturer: SCHNEIDER ELECTRIC
Type: SERVO MOTOR

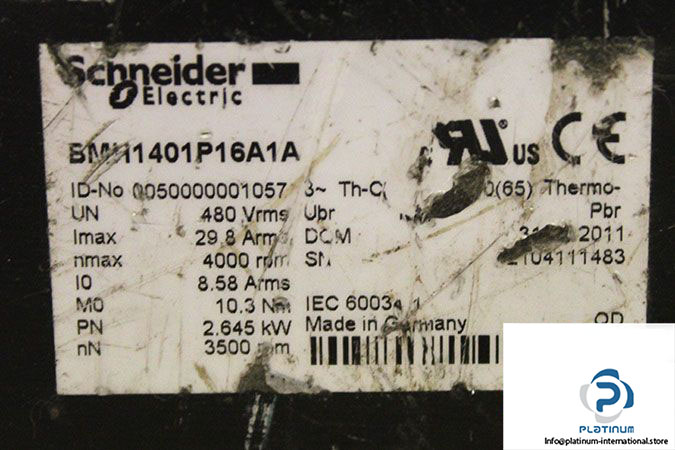

Model: BMH1401P16A1A
ID No: 0050000001057
Max. Voltage : 480 Vrms
Max. Current: 29.8 Arms
Stall Current: 8.58 Arms
Nominal Speed: 3500 Revolution Per Minute (rpm)
Max. Speed: 4000 Revolution Per Minute (rpm)
Nominal Torque: 10.3 Nm
Holding Brake: Without
Nominal Power: 2.645 kW
Flange Size: 140 mm
Motor Length: 152 mm
Shaft Diameter: 24 mm
Shaft Length: 50 mm
Thermal Class: F
Protection Class: IP50(65)
Weight: 8.14 kg
