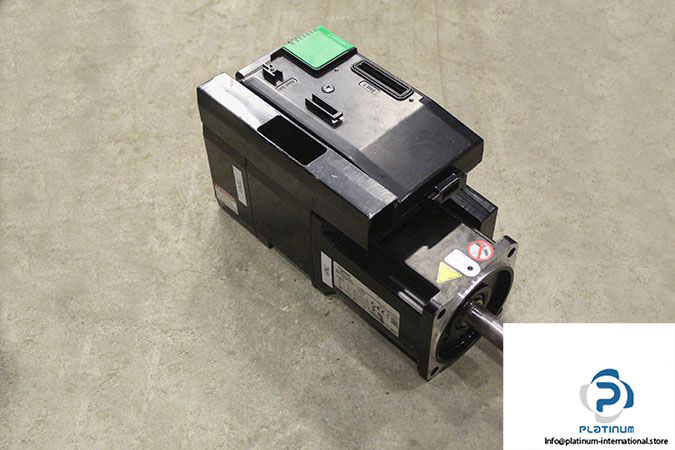

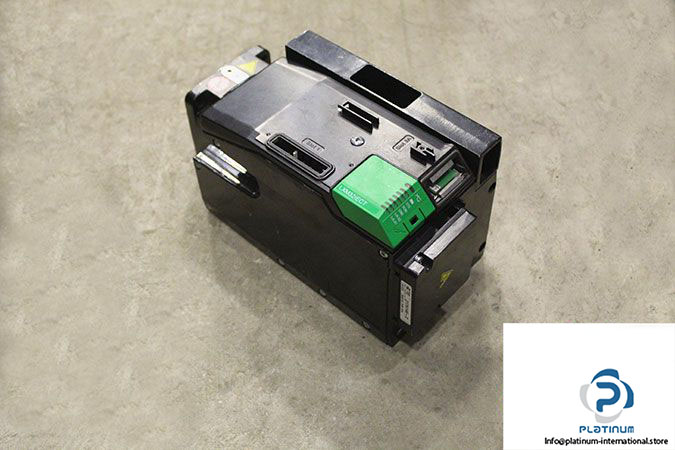

Schneider BMI1002P37A Servo Motor
Used
In stock1 unitReady to ship
1 333,33$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schneider Electric, Elau
Type: Servo Motors
Model: BMI1002P37A

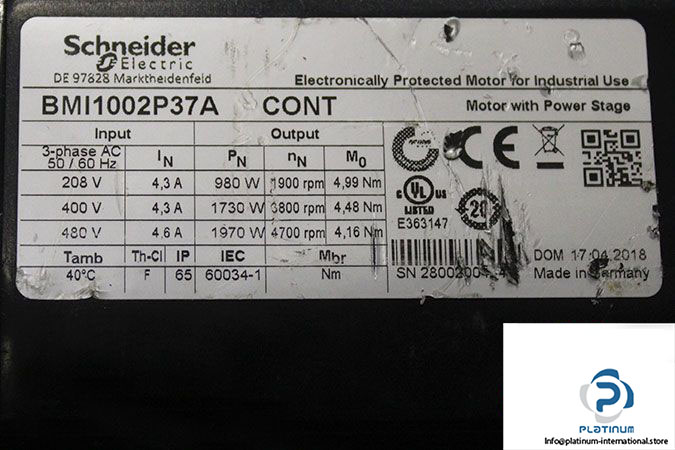

Rated Voltage [V]: 208/400/480
Rated Current [A]: 4.3/4.3/4.6
Stall Torque [Nm]: 4.99/4.48/4.16
Rated Power [W]: 980/1730/1970
Rated Speed [rpm]: 1900/3800/4700
Max Speed [rpm]: 6000
Ambient Temperature [°C]: 40
Frequency [Hz]: 50/60
Shaft Diameter [mm]: 19
Shaft Length [mm]: 40
Key Width [mm]: 6
Protection Class [IP]: 65
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 8.715
