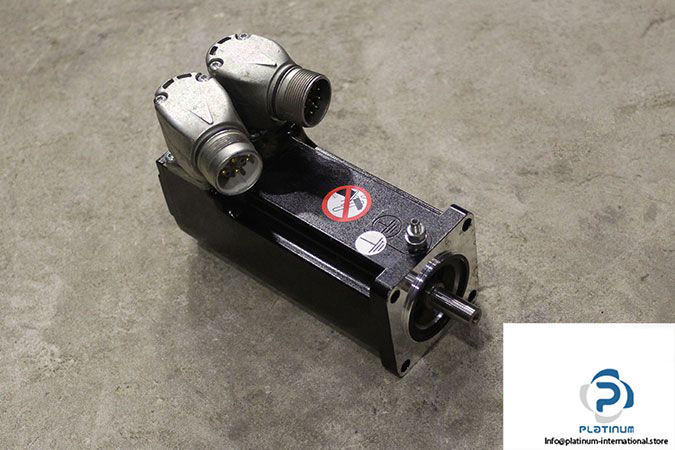

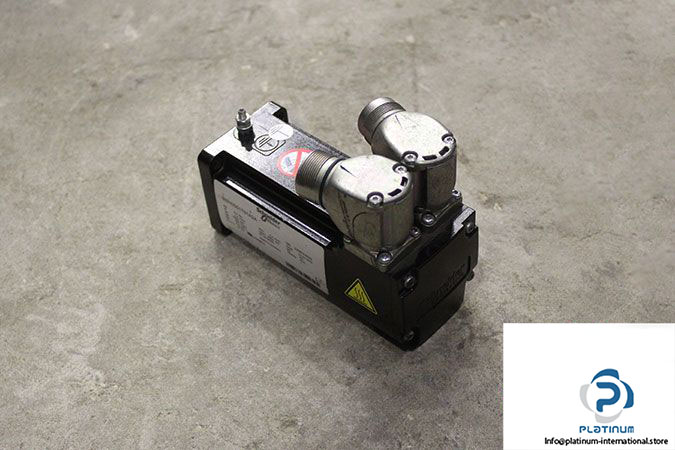

Schneider BSH0551T01A2A Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motor

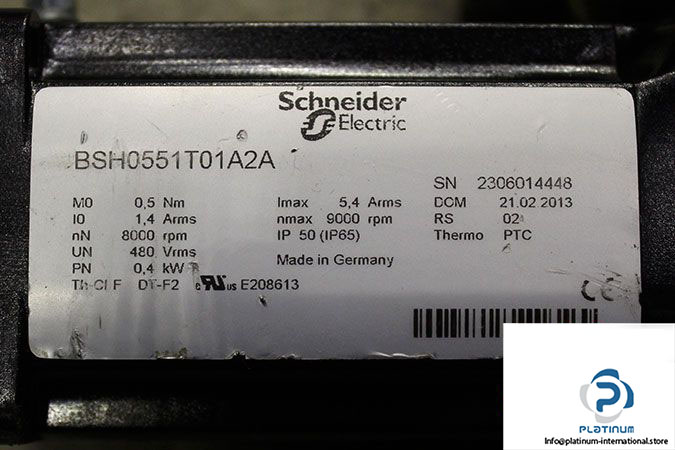

Model: BSH0551T01A2A

Device Short Name: BSH

Supply Voltage Max. [V]: 480

Nominal Speed [rpm]: 8000

Maximum Mechanical Speed [rpm]: 9000

Maximum Continuous Power [kW]: 0.40

Continuous Stall Current [A]: 1.4

Maximum Permanent Current [A]: 5.4

Switching Frequency [kHz]: 8

Maximum Radial Force [N]: 170

Continuous Stall Torque [Nm]: 0.5

Number of Motor Pole: 6

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Motor Flange Size [mm]: 55

Network Number of Phases: Three phase

Speed Feedback Resolution: 131072 Points/Turn

Mounting Support International: Standard Flange

Electrical Connection: Rotatable Right-Angled Connectors

Degree of Protection [IP]: 50 (65)

Thermal Class: F

Weight [kg]: 1.15
