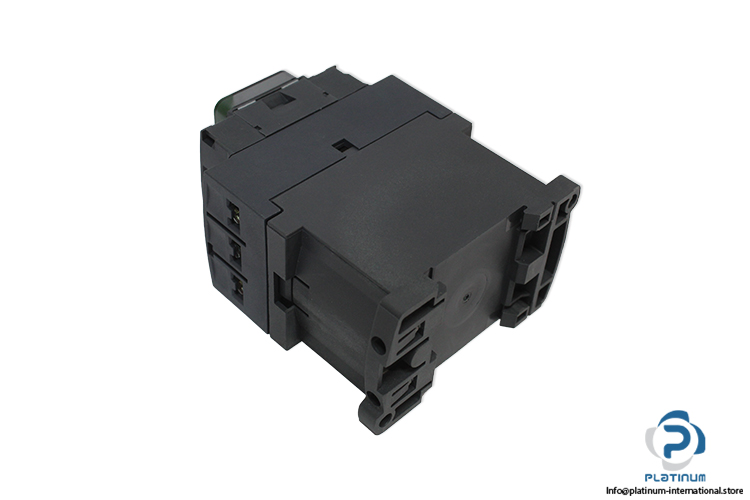

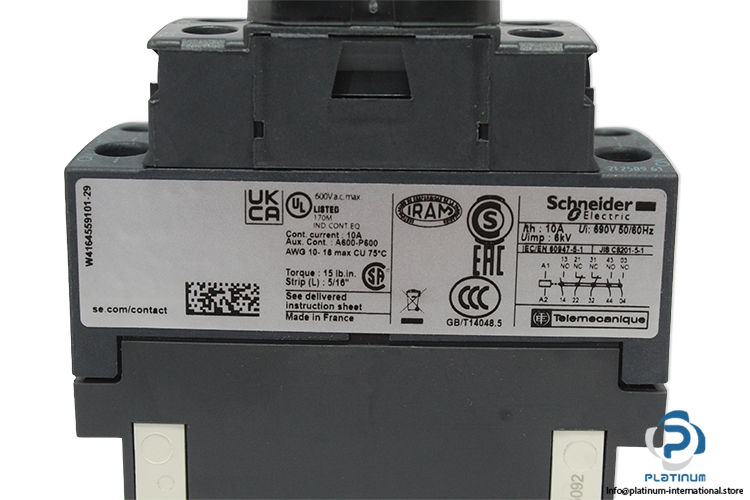

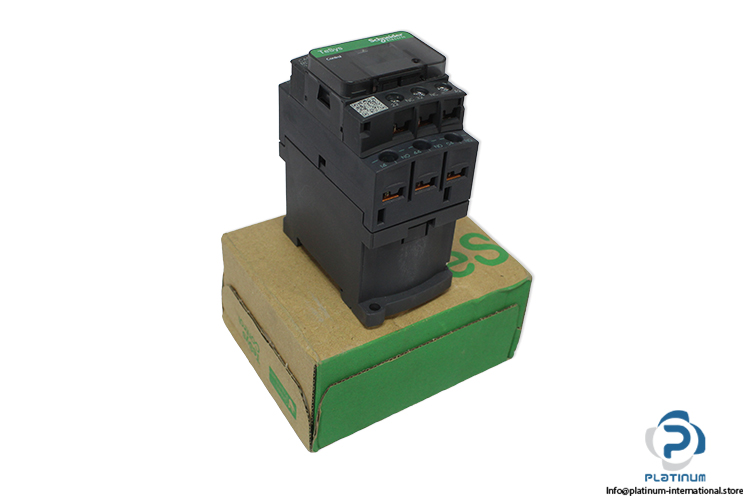

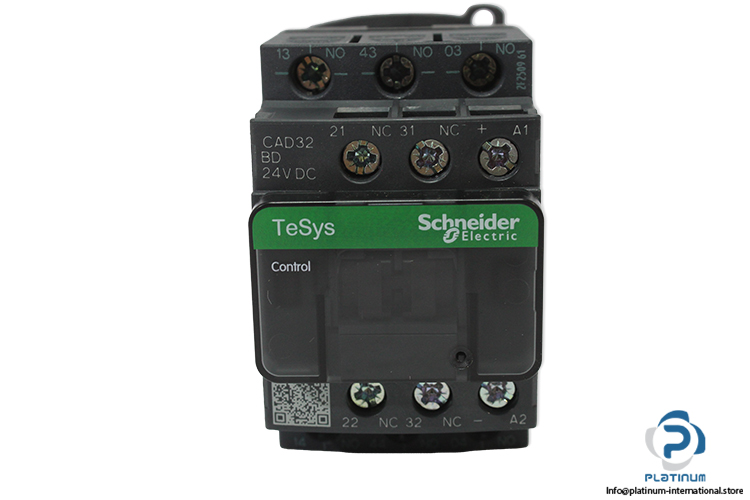

Schneider CAD32BD Control Relay

In stock2 unitsReady to ship

Control Relay

Schneider Electric TeSys Deca CAD32 BD control relay with 24 V DC control circuit voltage, 3 NO + 2 NC contacts, and integrated bidirectional limiting diode suppression technology.

Manufacturer
SCHNEIDER
SKU
1095986
Category
Others
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Schneider Electric CAD32 BD Control Relay

The Schneider Electric CAD32 BD control relay from the TeSys Deca range is designed for reliable switching and control applications in industrial automation systems. This relay features multiple contact configurations and integrated suppression technology to ensure stable control circuit operation.

Manufacturer: Schneider Electric

Type: Control Relay

Model: CAD32 BD

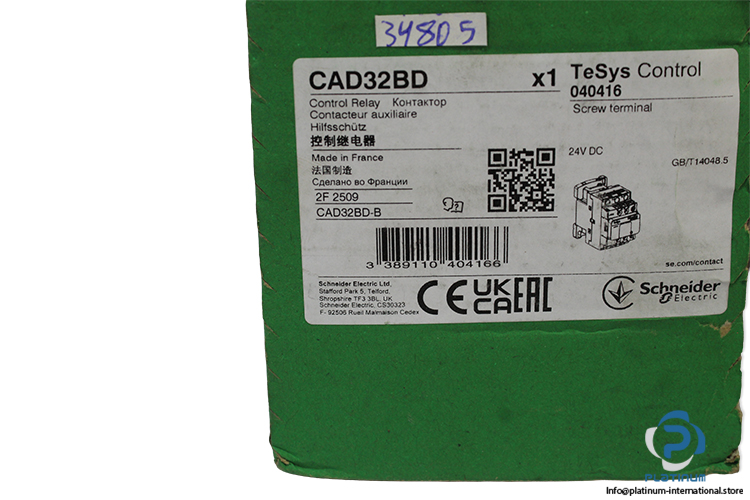

Order No: 040416

Code: 2F 2509

Serial Number: 3389110404166

Standards

Additional Information

RangeTeSys Deca
Short NameCAD
Control Circuit Voltage24 V DC
Rated Operational Voltage690 V AC
Operational Current10 A
Power Consumption5.4 W
Frequency25 / 400 Hz
Rated Impulse Voltage (Uimp)6 kV
Contacts3 Normally Open (NO) + 2 Normally Closed (NC)
Protection ClassIP20
Operation Temperature-40 / 60 °C
Dimensions77 x 45 x 93 mm
EN/IEC60947-5-1
GB/T14048.5
UL60947-5-1
CSAC22.2 No 60947-5-1
JISC8201-5-1
Contains OfSchneider LAD4TBDL Contactor Bi-Directional Limiting Diode
Mounting LocationSide
Mounting ModeBy Clips
Suppressor TechnologyBidirectional Peak Limiting Diode
[Uc] Control Circuit Voltage24 V DC
