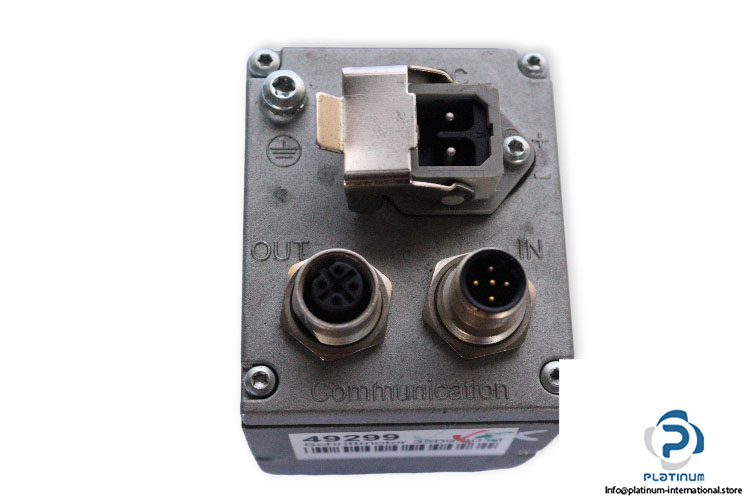

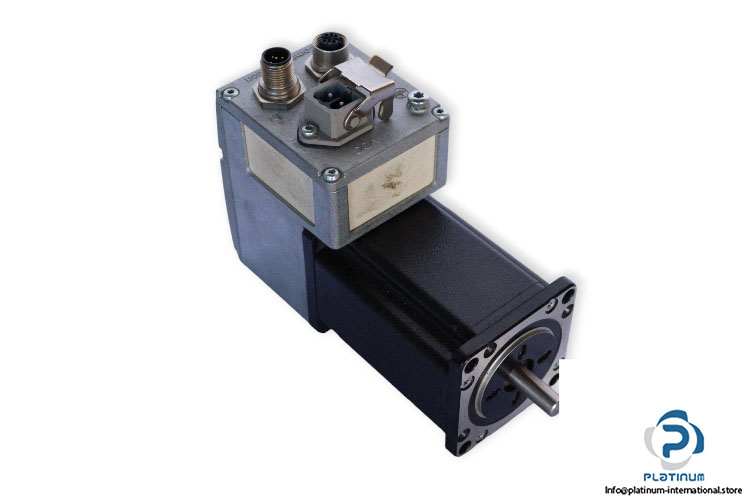

Schneider Electric ILS1B573PC1A0 Integrated Drive ILS With Stepper Motor

Manufacturer: Schneider Electric, Berger Lahr
Type: Integrated Drive ILS with Stepper Motors
Model: ILS2E571PC1A0
Part No.: IFS63/2DP0ISDS/-I-I54/O-001RPP41

Type Motor : 3 phase
Type of cooling: Natural convection
Winding type: P, medium rotation speed
Flange Size: 57mm
Shaft diameter: 8 mm
Shaft length: 21 mm
Length: 138.9 mm
Number of motor poles: 6
Nominal speed of rotation: 450 rpm
Nominal torque: 1.5 Nm
Holding torque: 1.7 Nm
Rated Supply Voltage: 36 VDC
Current consumption: 3.5 A
Maximum mechanical speed: 3000 rpm
Ambient Temperature: 50 C⁰
Thermal Class: F
