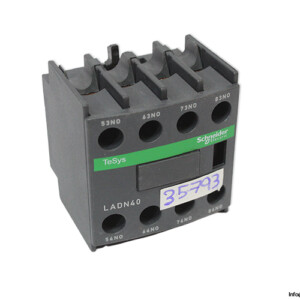

Schneider LADN40 Auxiliary Contact Block
Auxiliary Contact Block
Schneider Telemecanique LADN40 auxiliary contact block with 4 normally open contacts, 690 V AC rating, and screw clamp terminals for TeSys contactors.Schneider Telemecanique LADN40 Auxiliary Contact Block
The Schneider Telemecanique LADN40 is a reliable auxiliary contact block designed for integration with TeSys contactors. It provides additional normally open contacts for control circuit expansion in industrial automation systems, ensuring dependable switching performance under various operating conditions.
Manufacturer: Schneider Telemecanique
Type: Auxiliary Contact Block
Model: LADN40
Range: TeSys, TeSys Deca
Product Name: TeSys Deca
Device Short Name: LADN
Range Compatibility: TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Rated Operational Current (Ie):
6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
| Rated Operational Voltage | 690 V AC, 25 / 400 Hz |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 4 Normally Open |
| Connections “ Terminals | Screw Clamp Terminals |
| Operating Temperature | -5 / +60 °C |
| Degree Of Protection | IP2X Conforming To IEC 60529 |
| Dimensions | 48 x 44 x 42 mm |
