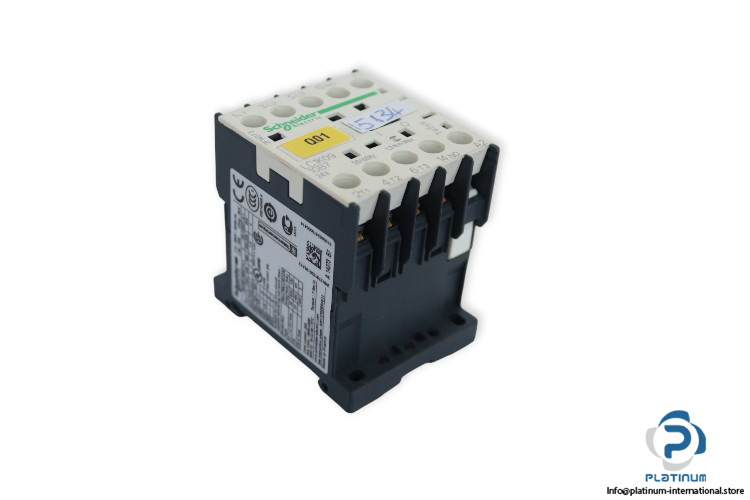

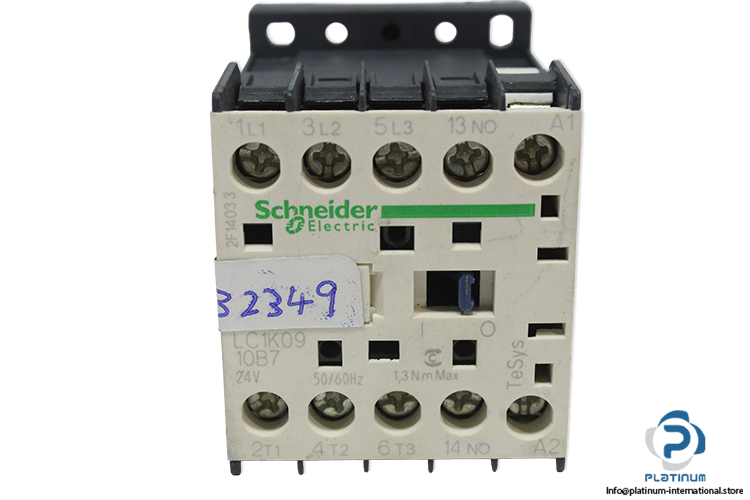

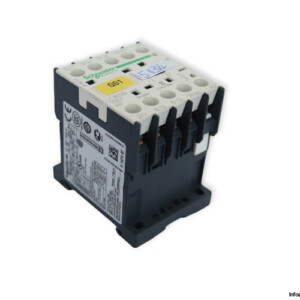

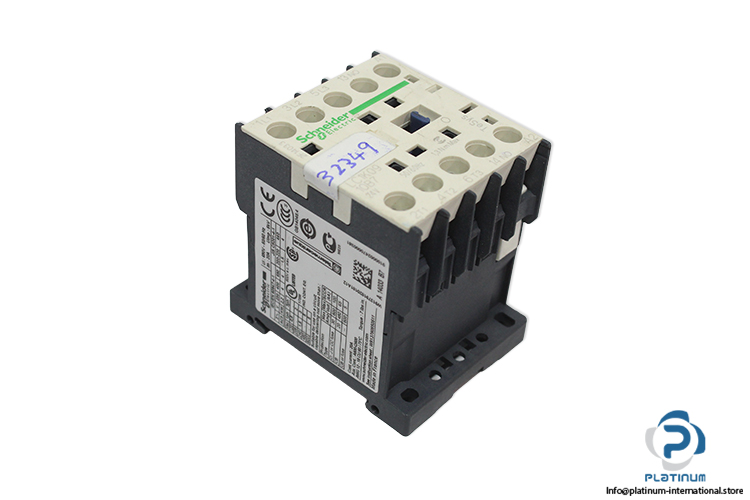

Schneider Electric LC1K0910B7 Contactor
Contactor
A compact TeSys contactor designed for motor control and power switching applications, offering reliable performance, standardized compliance, and suitability for industrial automation systems.Schneider Electric LC1K0910B7 Contactor
A compact and reliable power contactor designed for motor control and switching applications in industrial automation systems. This unit belongs to the TeSys range and is engineered for dependable electrical performance, long service life, and compliance with international standards. Manufacturer: Schneider Electric
Type: Contactor
Model: LC1K0910B7
Range: TeSys
Device Short Name: LC1K
Conventional Free Air Thermal Current (Ith):
20 A at 140 °F (60 °C) “ Power Circuit
10 A at 122 °F (50 °C) “ Signaling Circuit
Rated Short-Time Withstand Current (Icw) “ Power Circuit:
90 A at 122 °F (50 °C) “ 1 s
85 A at 122 °F (50 °C) “ 5 s
80 A at 122 °F (50 °C) “ 10 s
60 A at 122 °F (50 °C) “ 30 s
45 A at 122 °F (50 °C) “ 1 min
40 A at 122 °F (50 °C) “ 3 min
20 A at 122 °F (50 °C) “ ‰¥ 15 min
Rated Short-Time Withstand Current (Icw) “ Signaling Circuit:
80 A “ 1 s
90 A “ 500 ms
110 A “ 100 ms
| Control Circuit Voltage | 24 V AC |
| Frequency | 50 / 60 Hz |
| Motor Power | 4 kW @ 400 V AC |
| Number Of Poles | 3 |
| Auxiliary Contact Composition | 1 NO |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current | 9 A @ 440 V AC, 20 A @ 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Standard | IEC / EN 60947-4-1 |
| Dimensions (H × W × D) | 58 × 45 × 57 mm |
