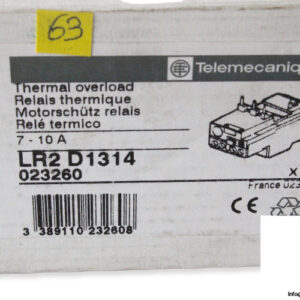

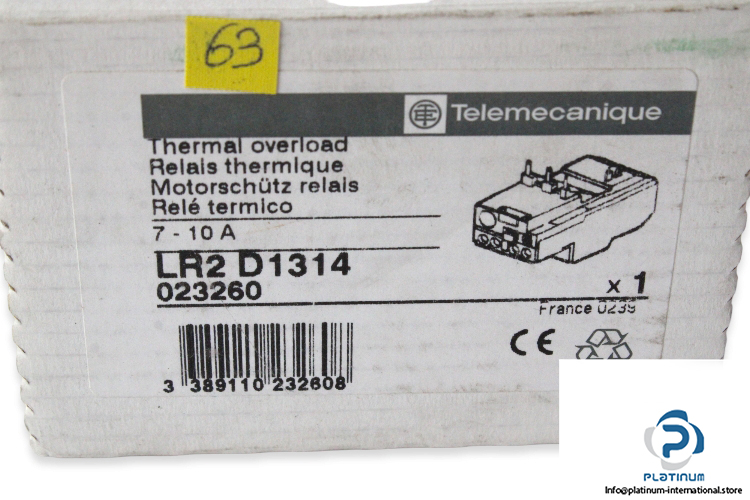

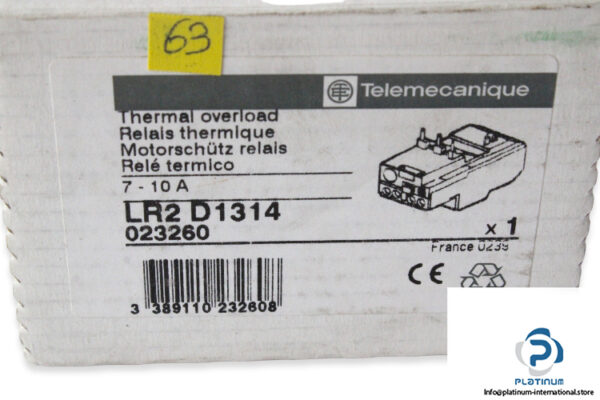

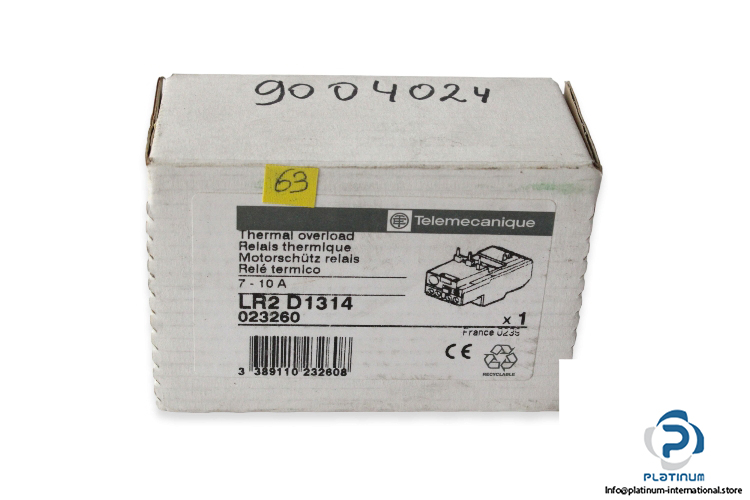

Schneider Electric LR2 D1314 Thermal Overload Relay

Manufacturer: Schneider Electric

Type: Thermal Overload Relay

Model: LR2 D1314

Part No.: 023260

Rated operational voltage: 690 V AC 50/60 Hz

Thermal protection adjustment range: 7 … 10 A

Surge withstand: 6 KV

Connections – terminals: Screw clamp terminals

Tightening torque: Control circuit: 1.7 N.m on screw clamp terminals

Relay application: Motor protection

Operating Temperature: -20 … +60 °C

Degree of Protection: IP2X conforming to VDE 0106

Dimensions: 121 x 75 x 100 mm
