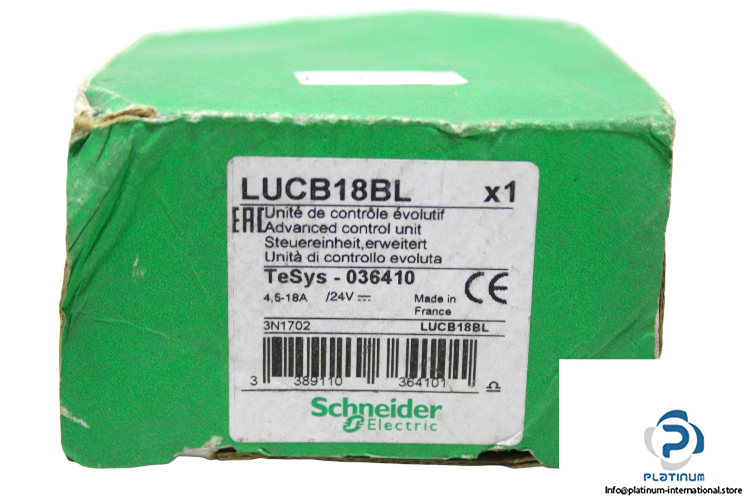

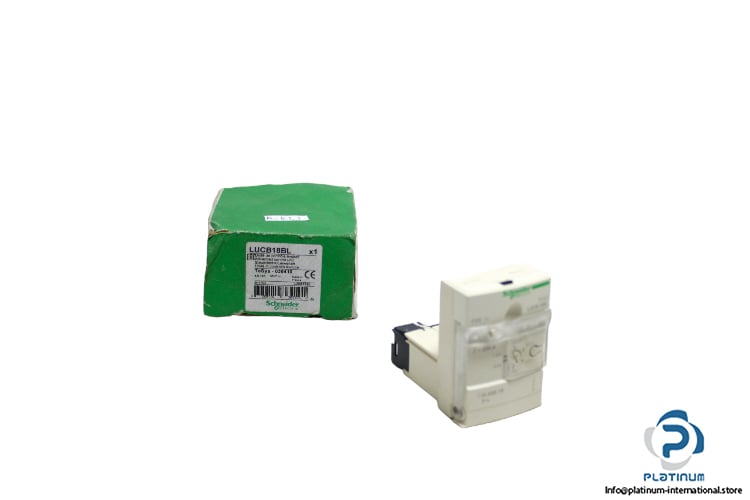

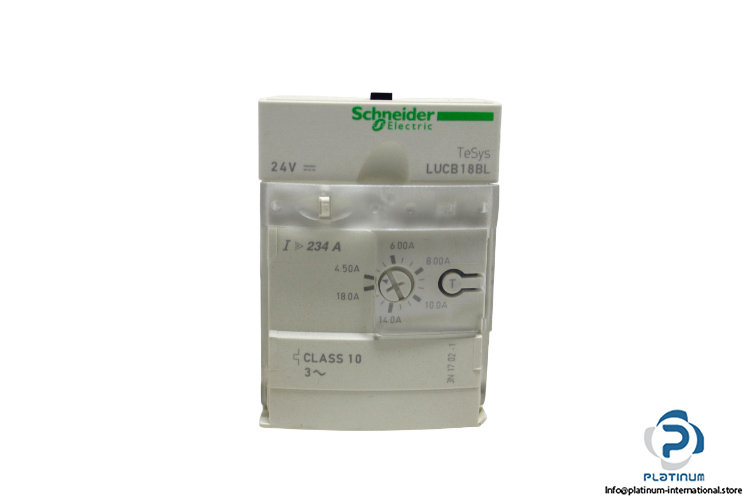

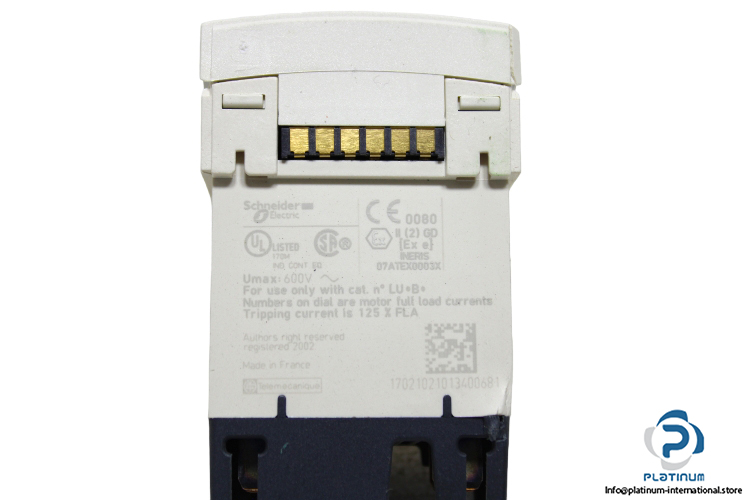

Schneider Electric LUCB18BL Control Unit

Manufacturer: Schneider Electric

Type: Control unit

Model: LUCB18BL

Range: TeSys

Rated Operational Voltage: 690 V AC

Rated current: >234 A

Network Frequency: 40 … 60 Hz

Load Type: 3-phase motor

Rated Motor Current Adjustment Range: 4.5 … 18 A

Control Circuit Voltage: 24 V DC

Power: 7.5 kW at 400 … 440 V AC

Fixing Mode: Plug-in

Ambient Air Temperature for Operation: -25 … 70 °C

Thermal overload class: 10

Degree of protection: IP20

Dimensions: 66 x 60 x 45 mm
