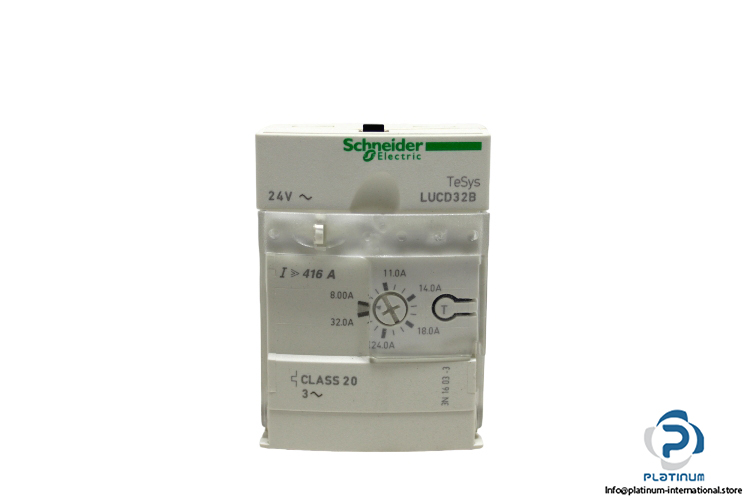

Schneider Electric LUCD32B Control Unit

Manufacturer: Schneider Electric

Type: Control unit

Model: LUCD32B

Range: TeSys

Rated Operational Voltage: 690 V AC

Rated current: >416 A

Network Frequency: 40 … 60 Hz

Load Type: 3-phase motor

Rated Motor Current Adjustment Range: 8 … 32 A

Control Circuit Voltage: 24 V AC

Power: 15 kW at 400 … 440 V AC

Fixing Mode: Plug-in

Ambient Air Temperature for Operation: -25 … 70 °C

Thermal overload class: 20

Degree of protection: IP20

Dimensions: 66 x 60 x 45 mm
