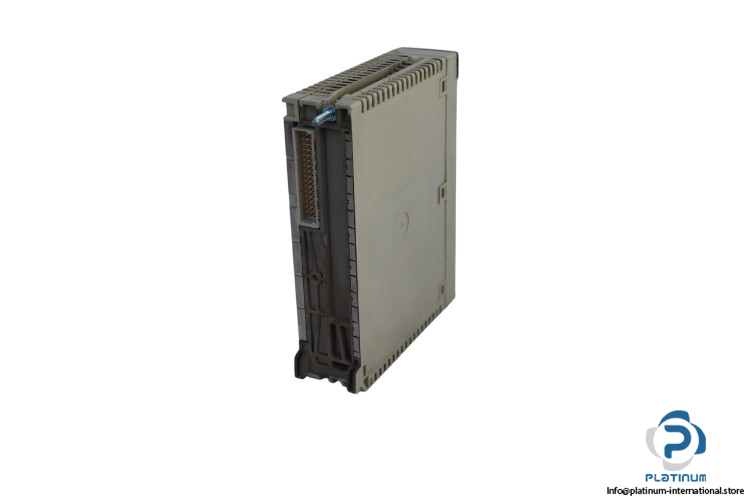

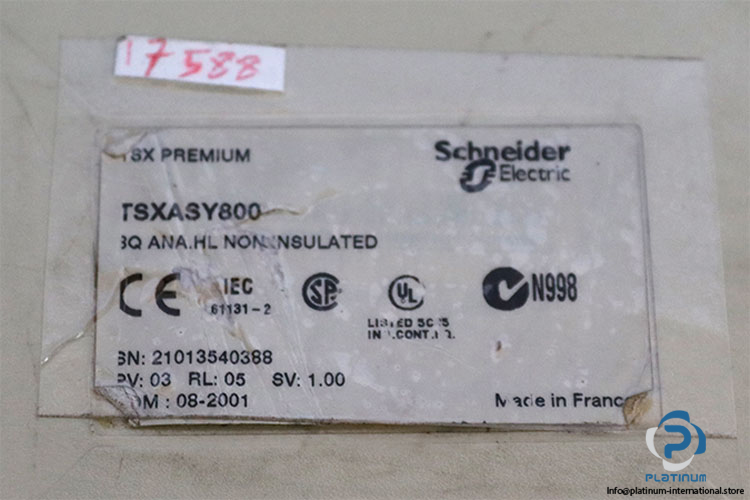

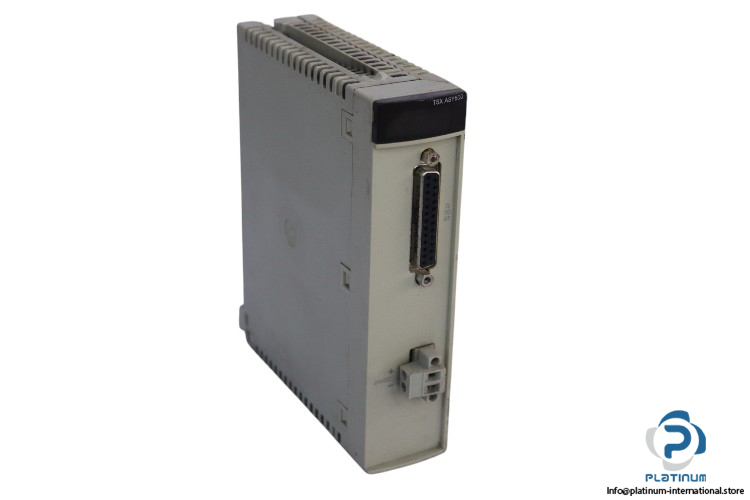

Schneider Electric TSXASY800 Analog Output Module

Schneider Electric Analog Output Module TSXASY800

The Schneider Electric TSXASY800 is an advanced analog output module designed for the Modicon Premium Automation platform. It features 8 analog outputs with various output types (current and voltage), offering precise control and monitoring for industrial applications. The module supports multiple analog-to-digital conversion formats and provides reliable performance in challenging environments.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Analog Output Module
• Model: TSXASY800
• Range: Modicon Premium Automation Platform
• Analog Output Number: 8 AO
• Analog Output Types:
  • Current: 0…20 mA
  • Current: 4…20 mA
  • Voltage: +/- 10 V
• Analog/Digital Conversion:
  • 13 bits + sign for +/- 10 V
  • 13 bits for 0…20 mA
  • 13 bits for 4…20 mA
• Conversion Time: 5 ms
• Current Consumption: 200 mA at 5 V DC, 300 mA at 24 V DC
• Operating Temperature: 0 to 60°C
• Standard: IEC 61131-2
• Protection Degree: IP20
