Schneider Electric TSXDSY16R5 Discrete Output Module

In stock17 unitsReady to ship

Schneider Electric TSXDSY16R5, discrete output module with 16 relay outputs, 12-24 V DC / 24-240 V AC, IP20, IEC 61131-2 compliant, ideal for industrial automation.

Manufacturer
SCHNEIDER ELECTRIC
SKU
1055168
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

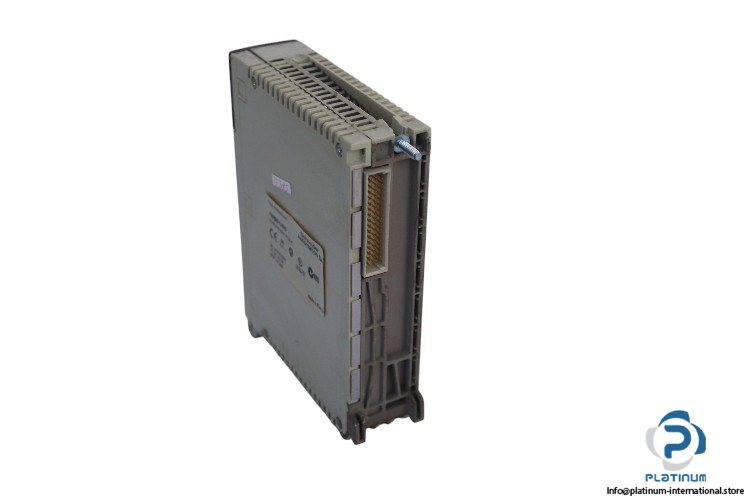

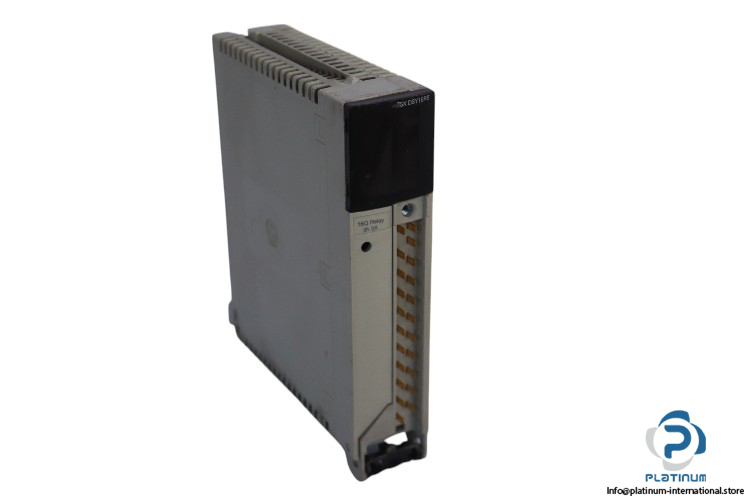

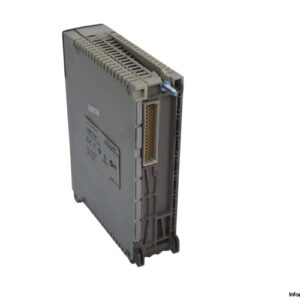

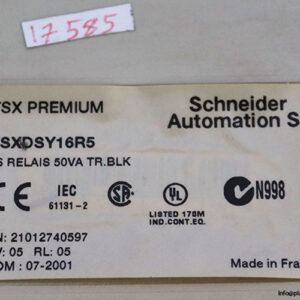

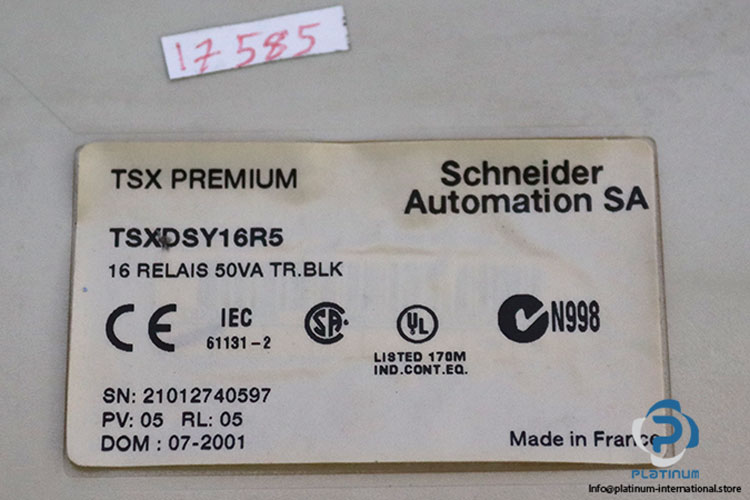

Schneider Electric Discrete Output Module TSXDSY16R5

The Schneider Electric TSXDSY16R5 is a versatile discrete output module designed for the Modicon Premium Automation platform. Featuring 16 relay outputs, this module offers reliable performance for both AC and DC applications. With a compact design and compliance with IEC 61131-2 standards, it ensures easy integration into industrial automation systems.

🔧 Technical Specifications:

  • Manufacturer: Schneider Electric
  • Type: Discrete Output Module
  • Model: TSXDSY16R5
  • Range: Modicon Premium Automation Platform
  • Discrete Output Number: 16
  • Discrete Output Type: Relay not protected
  • Response Time: < 10 ms (deactivation), < 8 ms (activation)
  • Power: 50 VA, 0.25 W
  • Discrete Output Voltage: 12 to 24 V DC / 24 to 240 V AC
  • Conventional Free Air Thermal Current (Ith): 3 A
  • Contacts Type and Composition: 1 NO
  • Electrical Connection: Screw terminal block
  • Current Consumption: 135 mA at 24 V DC rack, 80 mA at 5 V DC
  • Protection Degree: IP20
  • Standard: IEC 61131-2
  • Operation Temperature: 0 to 60°C
