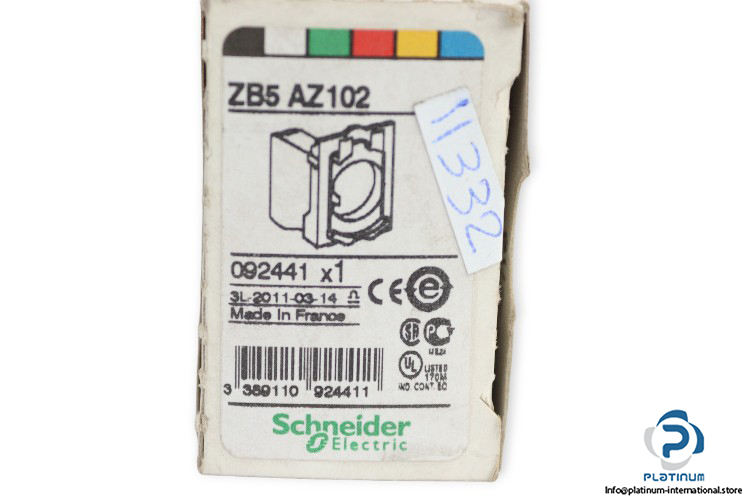

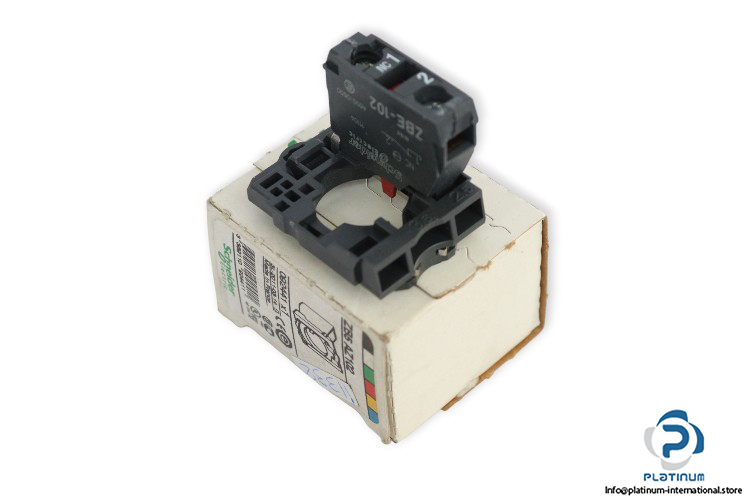

Schneider Electric ZB5 AZ102 Contact Block

Manufacture: Schneider electric
Type: Contact block
Model: ZB5AZ102

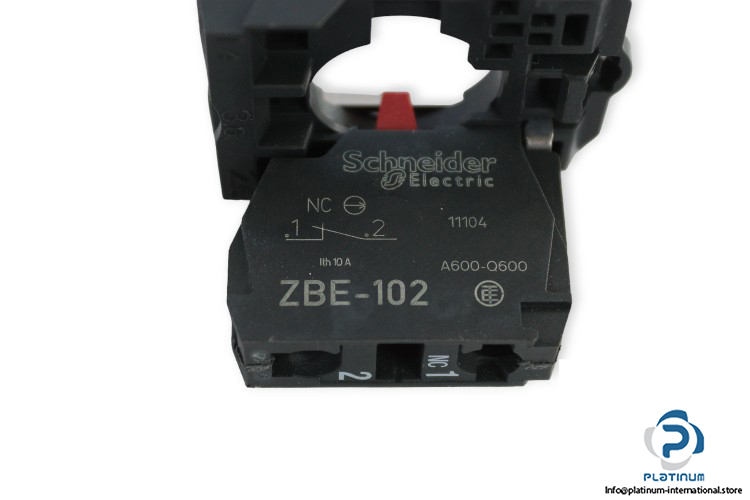

Part No.: ZBE-102
Order No.: 092441
Range of Product: Harmony XB5
Device Short Name: ZB5

Head Type: Standard
Conventional Free Air Thermal Current Ith: 10 A
Rated Insulation Voltage Ui: 600 V
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Operational Current Ie:
3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Contacts Type and Composition: 1 NC
Ambient Air Temperature For Operation: -40 … 70 °C
Degree Of Protection: IP20
Contacts Material: Silver alloy (Ag/Ni)
Contact Operation: Slow-break
Contact Block Type: Single
Connections Terminals: Screw clamp terminals
Dimensions: 30 x 42 x 32 mm
