Schneider GBK1201400F Adaptation KIT
Adaptation Kit
SCHNEIDER GBK1201400F adaptation kit for motor and gearbox assembly, compatible with Lexium series drives and BMH, SH3, BSH, ILM, MH3 motors.SCHNEIDER GBK1201400F Adaptation Kit
The SCHNEIDER GBK1201400F is a precision adaptation kit designed for secure assembly between compatible motors and gearboxes. It ensures accurate alignment and reliable mechanical integration within Schneider Electric motion control systems.
Manufacturer: SCHNEIDER
Type: Adaptation Kit
Model: GBK1201400F
MRN: 039790
Range Compatibility
Lexium 62
Lexium 32
Lexium 62 ILM
Lexium 52
Product Information
Product Or Component Type: Adaptation Kit
Device Short Name: GBK
Accessory / Separate Part Category: Adaptation Accessory
Product Compatibility: BMH, SH3, BSH, ILM, MH3
Accessory / Separate Part Destination: For Assembly Motor And Gearbox
Kit Composition

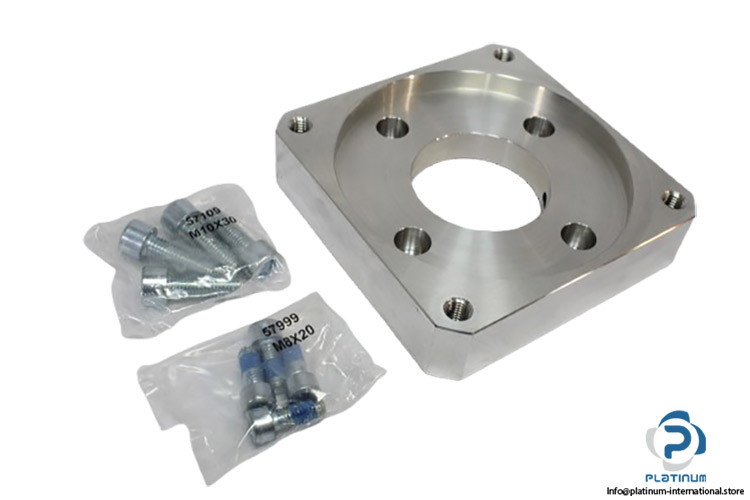

Included Components:
An Adaptor Plate
A Shaft End Adaptor
Screws And Bolts For Mounting
| Gearbox External Diameter | 4.7 In (120 mm) |
| Motor Flange Size | 5.5 In (140 mm) |
| Number Of Motor Stacks | 3, 2, 1 |
| Length | 1.3 In (31.8 mm) |
