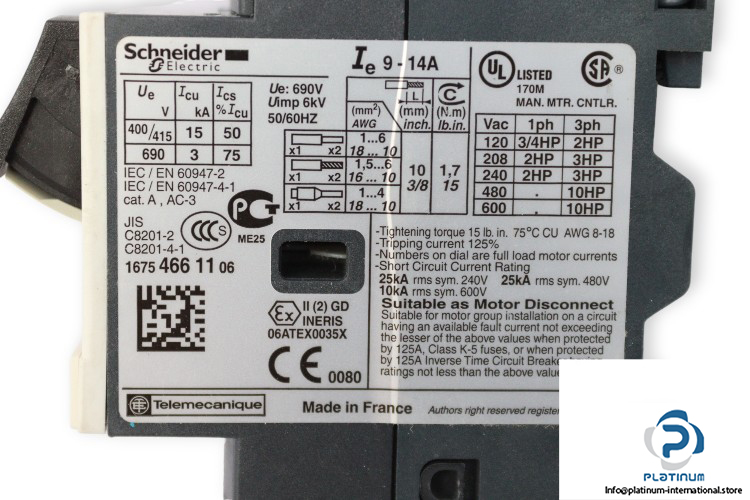

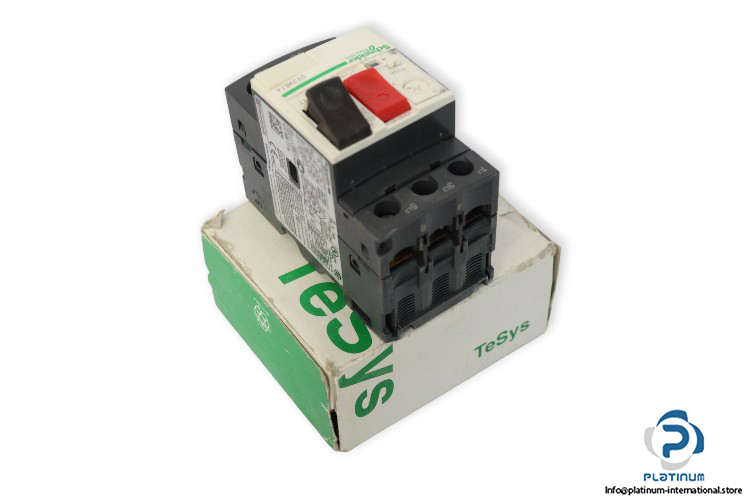

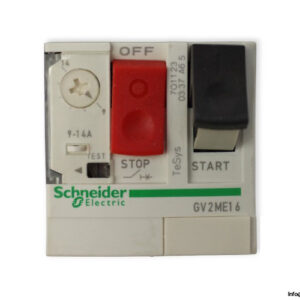

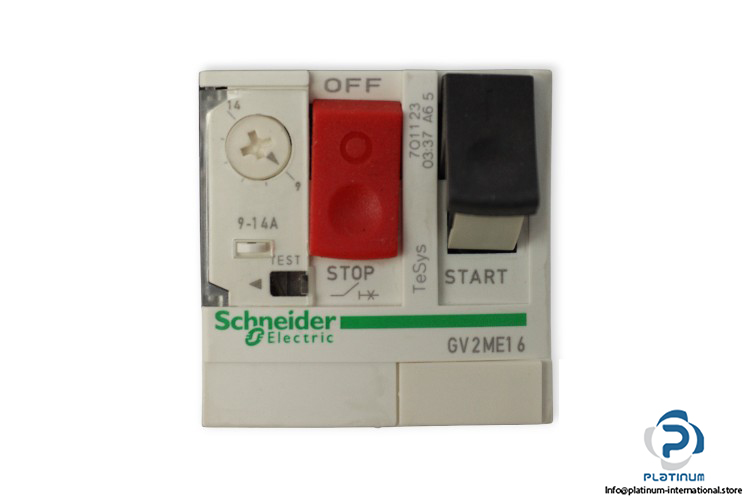

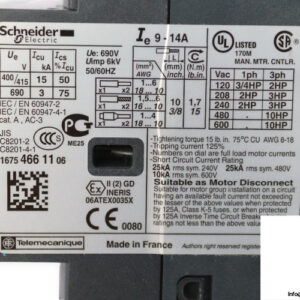

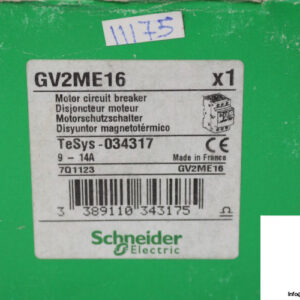

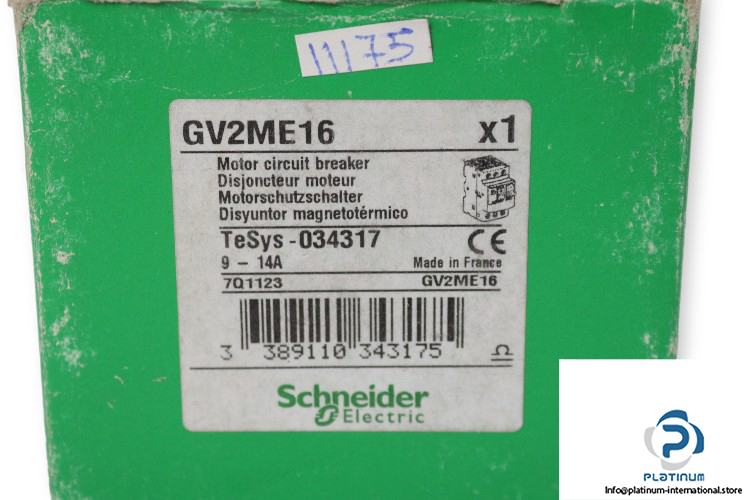

Schneider GV2ME16 Motor Circuit Breaker

Manufacturer: SCHNEIDER
Type: Motor Circuit Breaker
Model: GV2ME16
Part No.: 034317

Short Name: GV2ME
Rated Operational Voltage (Ue): 690 V AC
Rated Current (In): 14 A
Rated Current Range: 9 … 14 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V AC
Service Switching Capacity (Ics):
230/240 V AC: 100 kA
400/415 V AC: 15 kA
440 V AC: 8 kA
500 V AC: 6 kA
690 V AC: 3 kA
Breaking Switching Capacity (Icu):
240/480 V AC: 25 kA
600 V AC: 10 kA
Motor Power: 0.09 kW
Power Loss: 2.5 W
Poles No.: 3-Pole
Protection Class: IP20
Ambient Temperature: -25 … 60 °C
Dimensions: 89 x 45 x 78.5 mm
