Schneider GV2P07 Motor Circuit Breaker
Motor Circuit Breaker

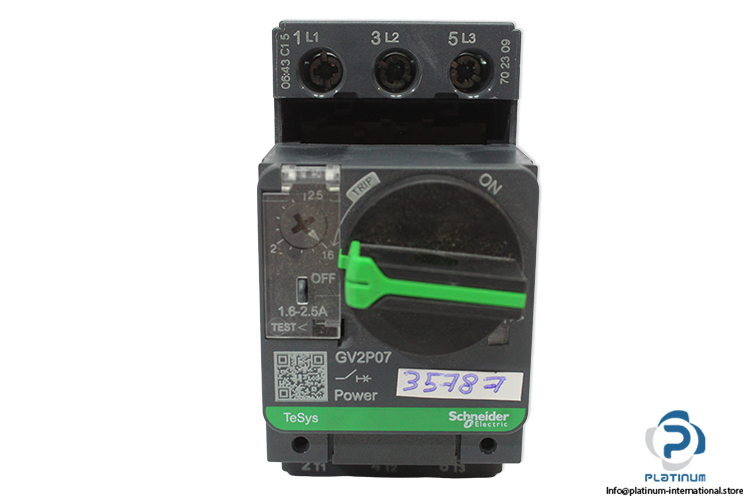

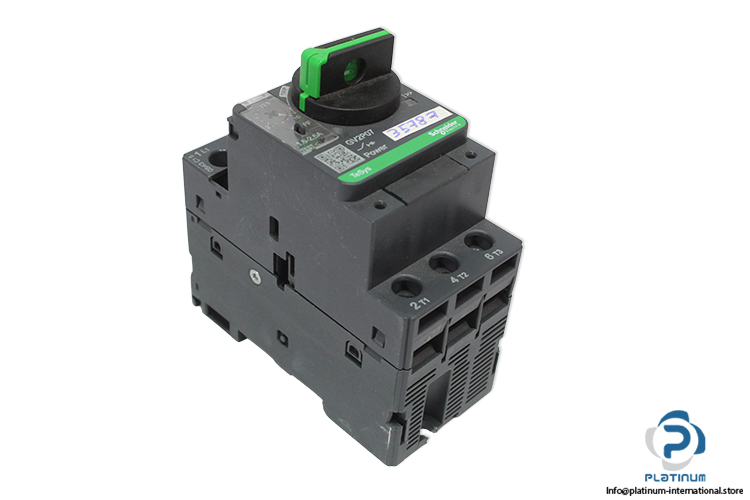

Schneider Electric GV2P07 motor circuit breaker from TeSys Deca range with thermal-magnetic protection, 3P configuration, 2.5 A rated current, and 100 kA breaking capacity.SCHNEIDER ELECTRIC GV2P07 Motor Circuit Breaker
The Schneider Electric GV2P07 motor circuit breaker from the TeSys Deca range is designed for reliable motor protection in industrial applications. Featuring thermal-magnetic trip technology and a compact 3-pole design, it ensures dependable protection against overload and short circuit conditions.
Manufacturer: SCHNEIDER ELECTRIC
Type: Motor Circuit Breaker
Model: GV2P07
Range: TeSys Deca
Product Name: TeSys GV2
Device Short Name: GV2P
Device Application: Motor Protection
Trip Unit Technology: Thermal-Magnetic
Poles Description: 3P
Network Type: AC
Control Type: Rotary Handle
Utilisation Category:
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Network Frequency:
50/60 Hz conforming to IEC 60947-2
Motor Power (kW):
0.75 kW at 400/415 V AC 50/60 Hz
1.1 kW at 500 V AC 50/60 Hz
1.5 kW at 690 V AC 50/60 Hz
Breaking Capacity:
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Dimensions:
| Rated Current [In] | 2.5 A |
| Thermal Protection Adjustment Range | 1.6 / 2.5 A conforming to IEC 60947-2 |
| Magnetic Tripping Current | 39 A |
| Conventional Free Air Thermal Current [Ith] | 2.5 A conforming to IEC 60947-2 |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Insulation Voltage [Ui] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Ambient Air Temperature For Operation | -20 / 60 °C |
