Schneider GVAM11 Contact Block
Auxiliary Contact Block

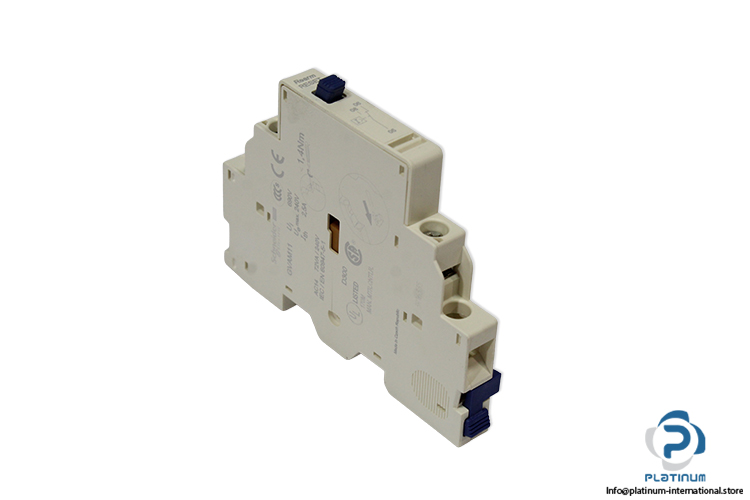

SCHNEIDER GVAM11 MAN-STARTER short circuit contact block with 1 C/O contact, fault signalling capability, and compatibility with TeSys GV2 and GV3 circuit breakers.SCHNEIDER GVAM11 Auxiliary Contact Block
The SCHNEIDER GVAM11 is a MAN-STARTER short circuit contact block designed for fault signalling and auxiliary contact applications within TeSys motor starter and circuit breaker systems. It provides reliable short-circuit indication and is engineered for integration with compatible TeSys GV2 and GV3 devices.
Manufacturer: SCHNEIDER
Type: MAN-STARTER Short Circuit Contact Block
Model: GVAM11

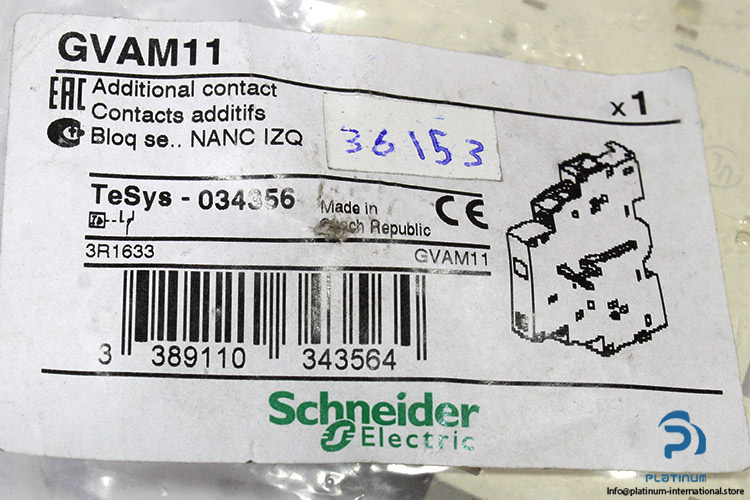

Part No.: 034356
Serial No.: 3389110343564
Product Compatibility:
GV2L
GV2LE
GV2ME
GV2P
GV2RT
GV3L
GV3P
Range Compatibility:
TeSys GV2 Circuit Breaker
TeSys GV3 GV3P Circuit Breaker
TeSys GV3 GV3L Circuit Breaker

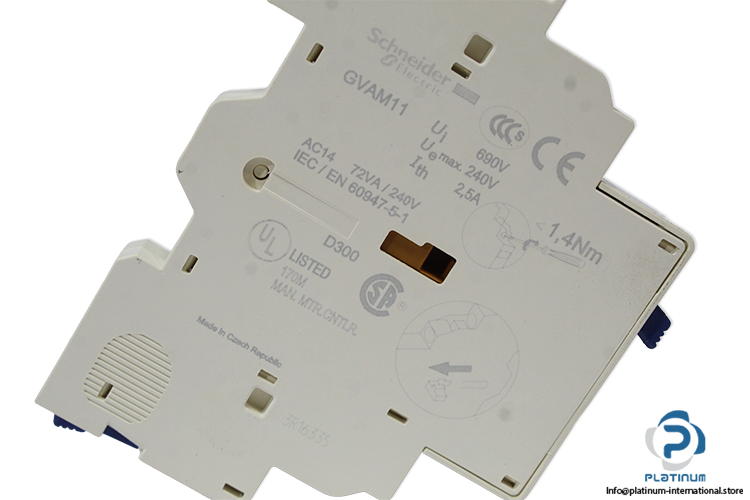

[Ui] Rated Insulation Voltage:
690 V “ Conforming To IEC 60947-1
300 V “ Conforming To UL 508
300 V “ Conforming To CSA C22.2 No 14
[Ue] Rated Operational Voltage:
24...240 V AC
24...60 V DC
Dimensions:
89 mm
9.3 mm
66 mm
| Range | TeSys |
| Device Short Name | GVAM |
| Product Or Component Type | Auxiliary Contact Block |
| Mounting Location | Left Side |
| Auxiliary Contacts Operation | Short-Circuit Signal 1 C/O |
| Pole Contact Composition | 1 C/O |
| [Ith] Conventional Free Air Thermal Current | 2.5 A For Fault Signalling |
| Standard | IEC 60947-5-1 |
