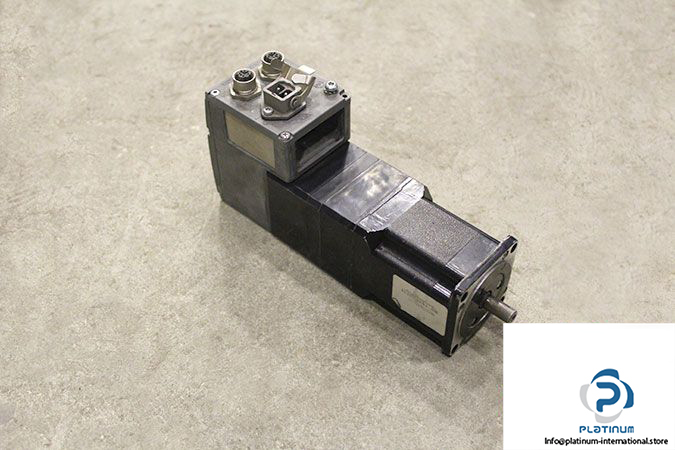

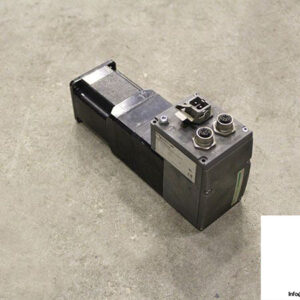

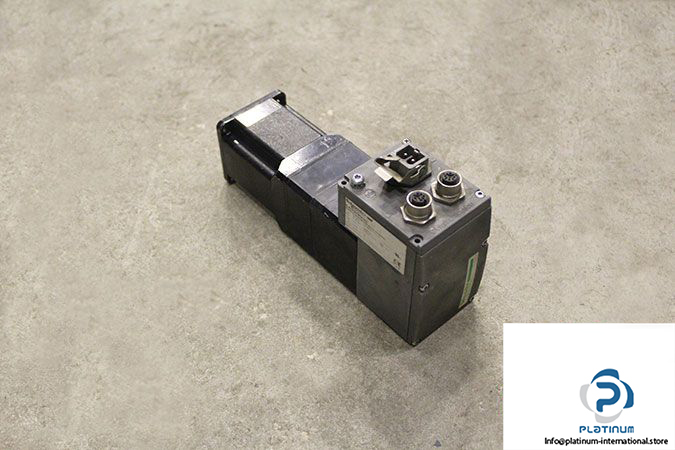

Schneider ILA1F572PB2A0 Integrated Drive ILA With Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Integrated Drive ILA with Servo Motors

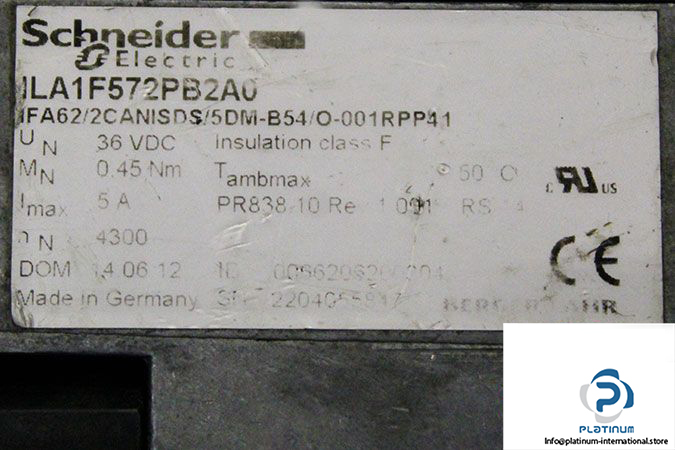

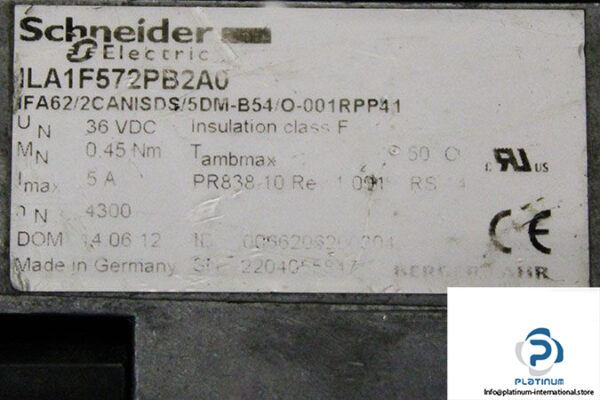

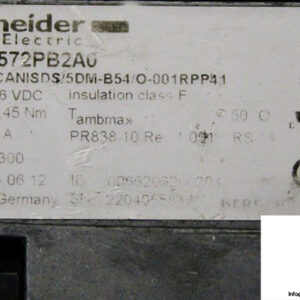

Model: ILA1F572PB2A0



Peak Stall Torque [Nm]: 0.72

Continuous Stall Torque [Nm]: 0.45

Nominal Torque [Nm]: 0.45

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 4300

Ambient Temperature [°C]: 50

Number of Poles: 6

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Length [mm]: 207.8

Protection Class [IP]: 54

Thermal Class: F

Weight [kg]: 1.865
