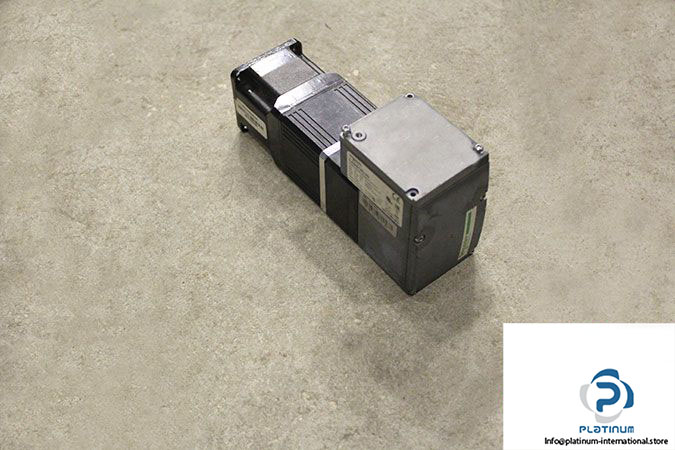

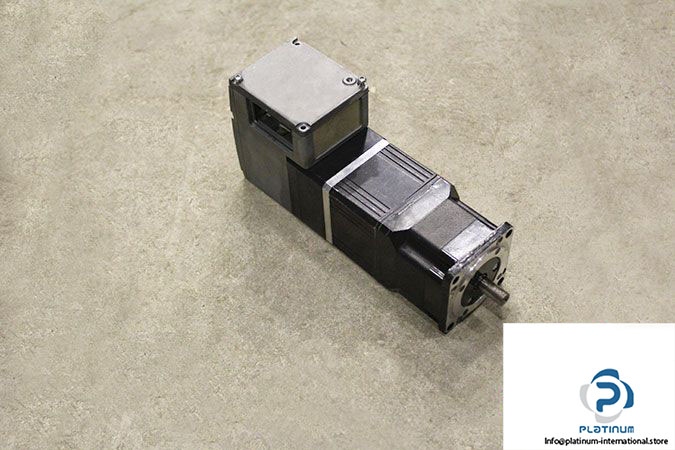

Schneider ILA2K571PC1F0 Integrated Drive ILA With Servomotor

Manufacturer: Schneider Electric, Berger Lahr

Type: Integrated Drive ILA with Servomotor

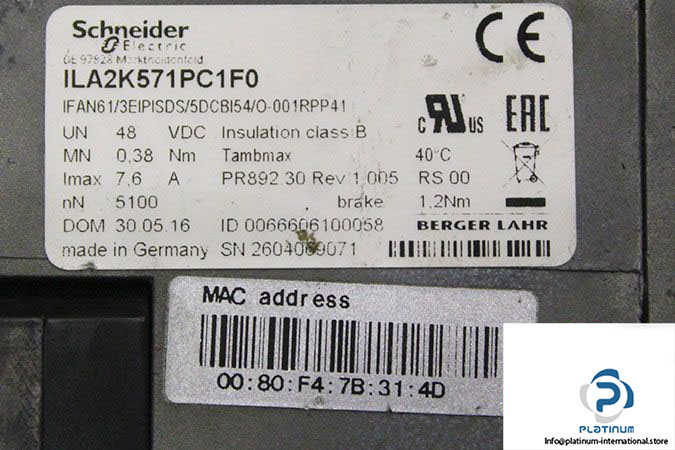

Model: ILA2K571PC1F0

Part No.: IFAN61/3EIPISDS/5DCBI54/O-001RPP41

Nominal Torque [Nm]: 0.38

Peak Stall Torque [Nm]: 0.62

Continuous Stall Torque [Nm]: 0.44

Max Current [A]: 7.6

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 5100

Brake Torque [Nm]: 1.2

Number of Poles: 6

Ambient Temperature [°C]: 40

Mounting Support: Flange

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Length [mm]: 190.8

Protection Class [IP]: 54

Thermal Class: B

Weight [kg]: 1.855
