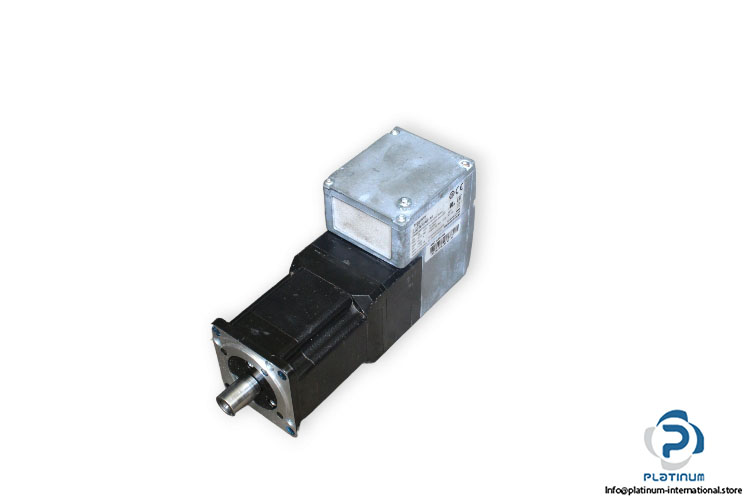

Schneider ILA2T572PB1A0 Integrated Drive ILA With Servo Motor

Manufacturer: Schneider Electric, Berger Lahr
Type: Integrated Drive ILA with Servo Motor

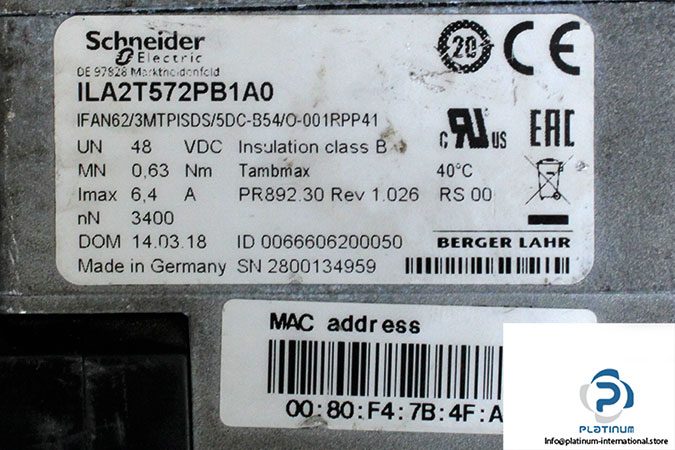

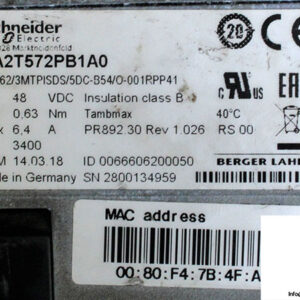

Model: ILA2T572PB1A0

Nominal Torque [Nm]: 0.63
Peak Stall Torque [Nm]: 1.62
Continuous Stall Torque [Nm]: 0.78
Max Current [A]: 6.4
Supply Voltage [VDC]: 48
Rated Speed [rpm]: 3400
Number of Poles: 6
Ambient Temperature [°C]: 40
Mounting Support: Flange
Flange Size [mm]: 57
Shaft Diameter [mm]: 9
Shaft Length [mm]: 20
Length [mm]: 163.8
Thermal Class: B
Weight [kg]: 1,75
