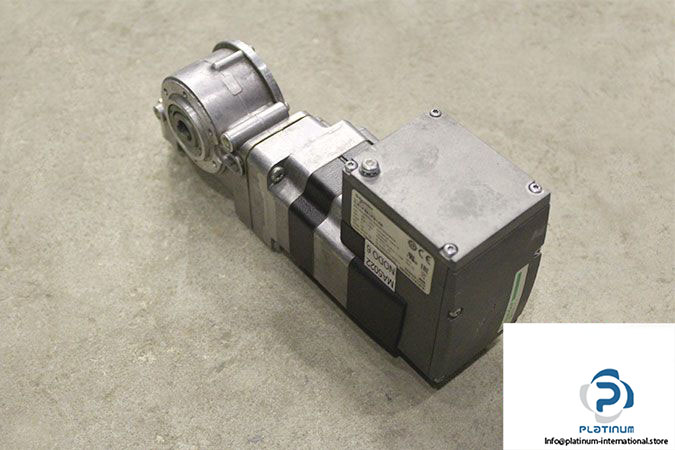

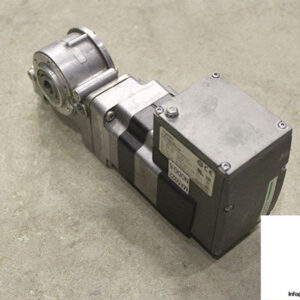

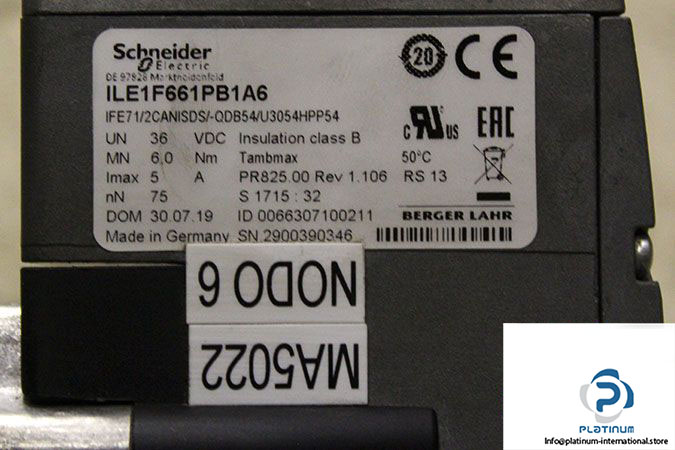

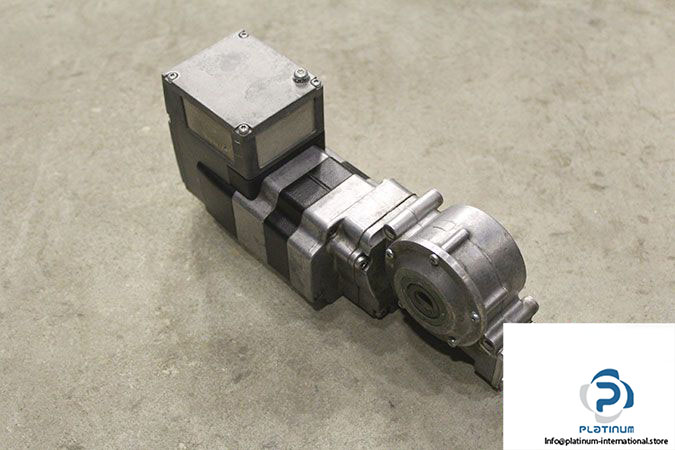

Schneider ILE1F661PB1A6 Brushless DC Motor

Manufacturer: Schneider Electric, Elau

Type: Brushless DC Motor

Model: ILE1F661PB1A6

Reduction Ratio: 1:54

Supply Voltage [V]: 36

Max Current [A]: 5

Nominal Speed [rpm]: 75

Nominal Torque [Nm]: 6

Peak Stall Torque [Nm]: 11.66

Continuous Stall Torque [Nm]: 7.9

Nominal Output Power [W]: 47

Number of Poles: 6

Length [mm]: 229

Shaft end: Hole

Flange Size [mm]: 66

Ambient Air Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 2.15
