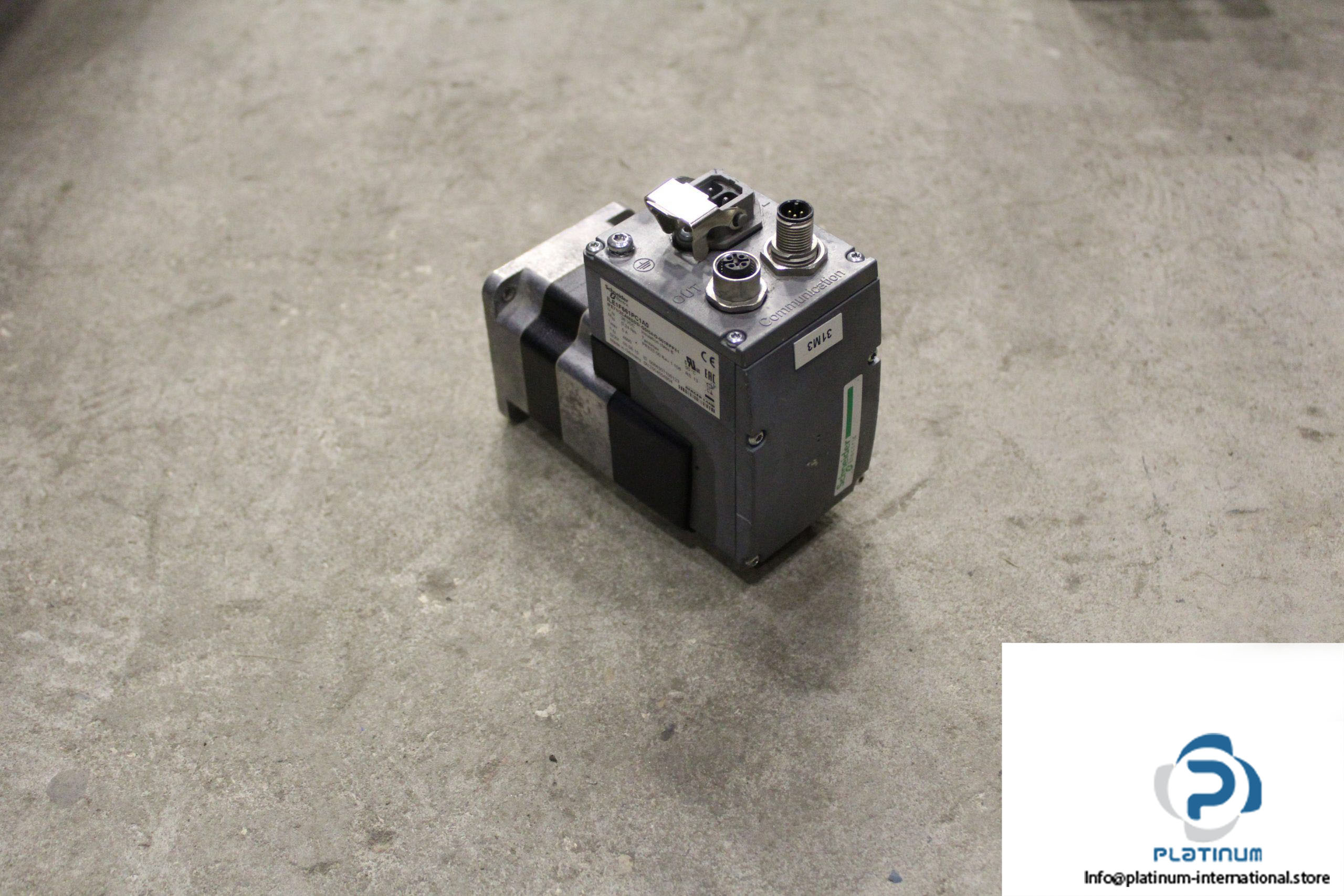

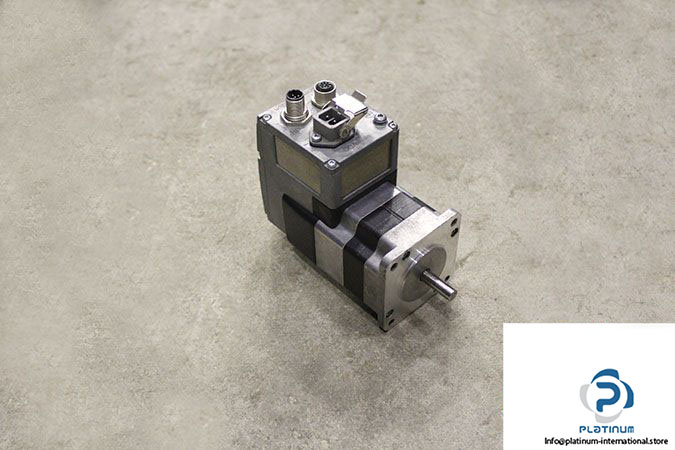

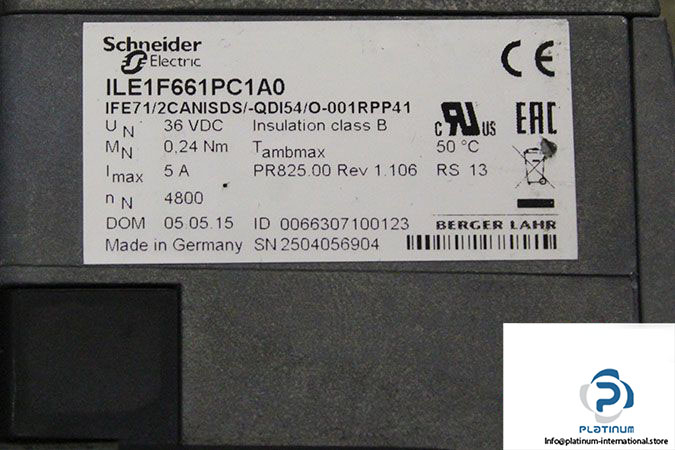

Schneider ILE1F661PC1A0 Brushless DC Motor

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motor

Model: ILE1F661PC1A0

Part No.: IFE71/2CANISDS/-QDI54/O-001RPP41

Reduction Ratio: 1

Peak Stall Torque [Nm]: 0.36

Continuous Stall Torque [Nm]: 0.27

Nominal Torque [Nm]: 0.24

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 4800

Number of Poles: 6

Flange Size [mm]: 66

Shaft Diameter [mm]: 8

Shaft Length [mm]: 25

Length [mm]: 122

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 1.435
