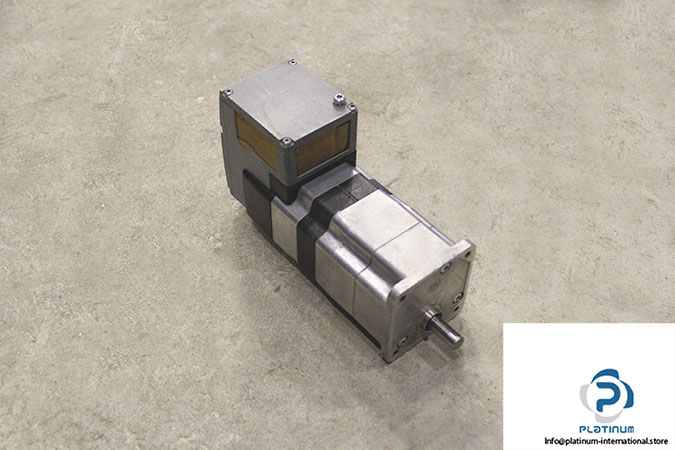

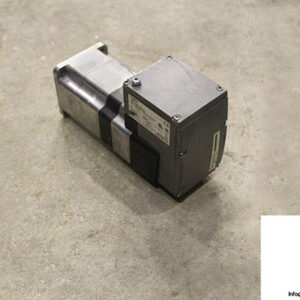

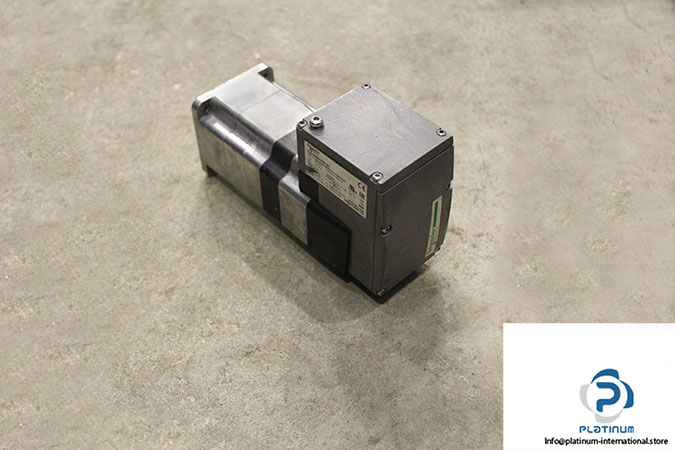

Schneider ILE1R661PB1A1 Brushless DC Motor

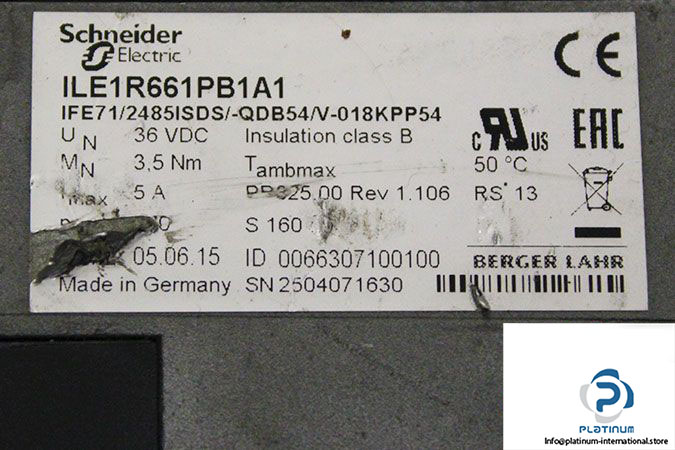

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motor

Model: ILE1R661PB1A1

Part No.: IFE71/2485ISDS/-QDB54/V-018KPP54

Reduction Ratio: 18

Peak Stall Torque [Nm]: 5.18

Continuous Stall Torque [Nm]: 4.3

Nominal Torque [Nm]: 3.5

Max Current [A]: 5

Supply Voltage [VDC]: 36

Nominal Speed [rpm]: 270

Number of Poles: 6

Mounting Support: Flange

Flange Size [mm]: 66

Shaft Diameter [mm]: 10

Shaft Length [mm]: 25

Key Width [mm]: 16

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 1.815
