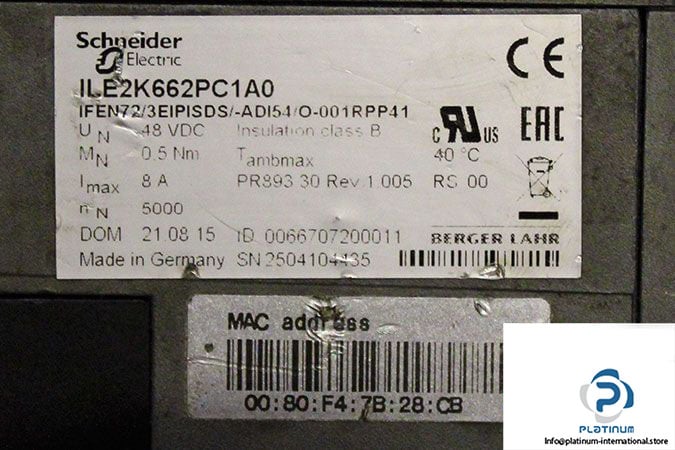

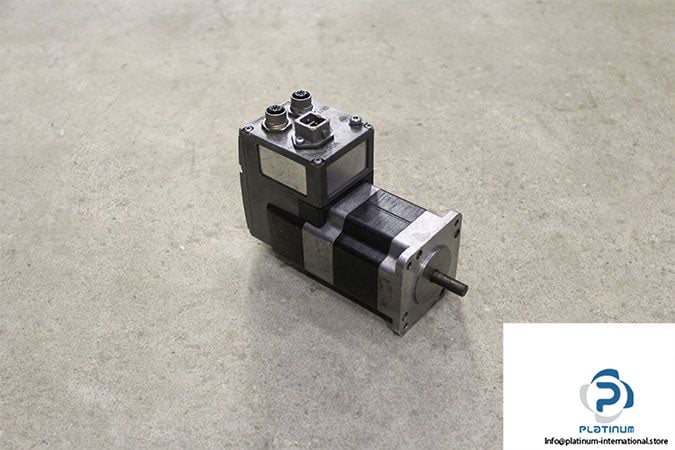

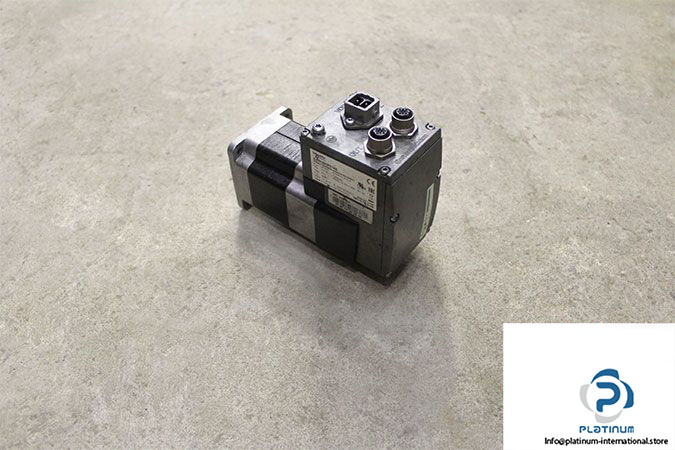

Schneider ILE2K662PC1A0 Brushless DC Motor

Manufacturer: Schneider Electric, Elau

Type: Brushless DC Motors

Model: ILE2K662PC1A0

Part No.: IFN72/3EIPISD/-ADI54/O-001RPP41

Device Short Name: ILE

Phase: Single phase

Reduction Ratio [i]: 1:1

Rated Supply Voltage [VDC]: 48

Nominal Torque [Nm]: 0.5

Maximum Supply Current [A]: 8

Nominal Output Power [W]: 262

Peak Stall Torque [Nm]: 0.8

Continuous Stall Torque [Nm]: 0.54

Nominal Speed [rpm]: 5000

Length [in]: 5.51, (140 mm)

Number of Motor Pole: 6

Max. Ambient Temperature [°C]: 40

Degree of Protection [IP]: 54

Communication Interface: Ethernet/IP, Integrated

Winding Type: Medium Speed of Rotation and Medium Torque

Electrical Connection: Industrial Connector

Insulation Class: B

Weight [kg]: 1.75
