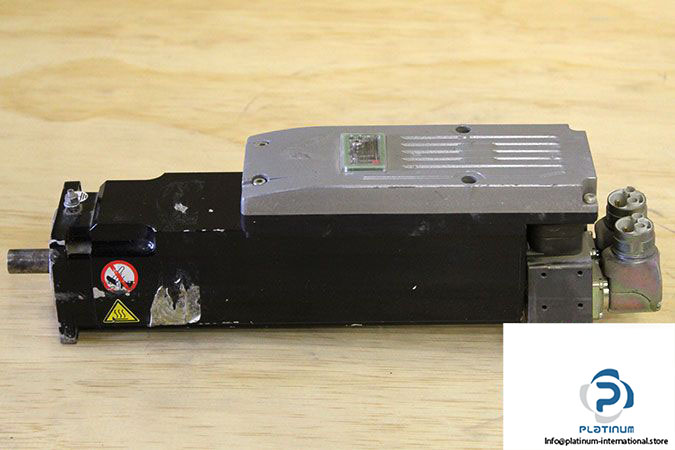

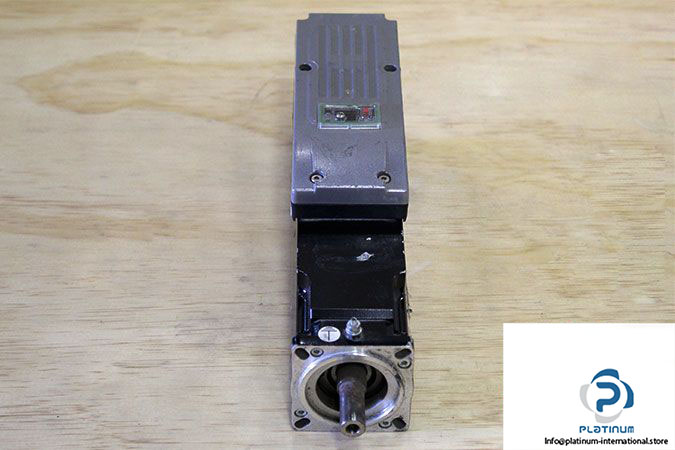

Schneider Electric ILM0703P02F0000 Integrated Servo Motor

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: INTEGRATED SERVO MOTOR

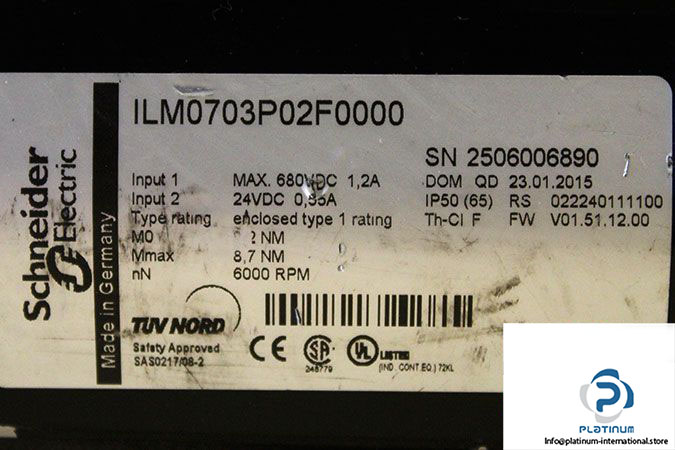

Model: ILM0703P02F0000

Input 1

Max. Voltage : 680 V DC

Max. Current (^Imax): 1.2 A

Input 2

Max. Voltage : 24 V DC

Max. Current (^Imax): 0.55 A



Type Rating: Enclosed Type 1 Rating

Normal Speed: 6000 Revolution Per Minute (rpm)

Continuous Stall Torque: 2.2 Nm

Peak Stall Torque: 8.7 Nm

Nominal Torque: 1.15 Nm

Holding Torque: 3 Nm Holding Brake

Flange Size: 70 mm

Motor Length: 293 mm

Shaft Diameter: 14 mm

Shaft Length: 30 mm

Insulation Class: F

Protection Class: IP50 (65)

Weight: 5.2 kg
