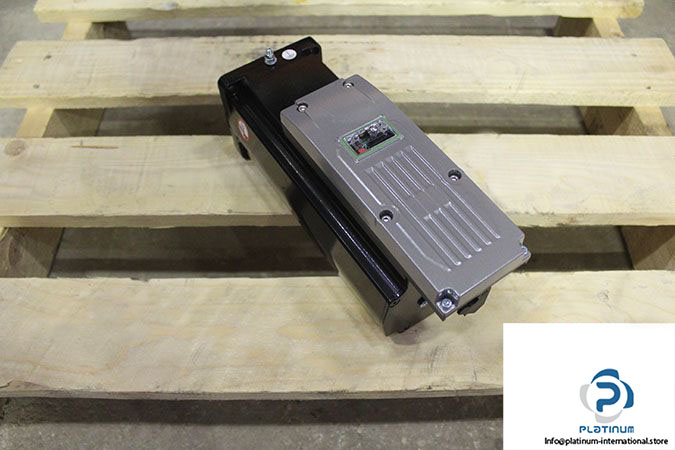

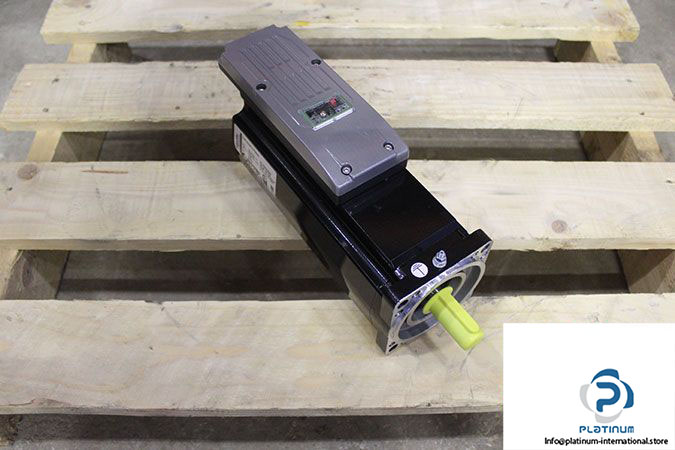

Schneider ILM1002P01F0000 Integrated Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Integrated Servo Motor

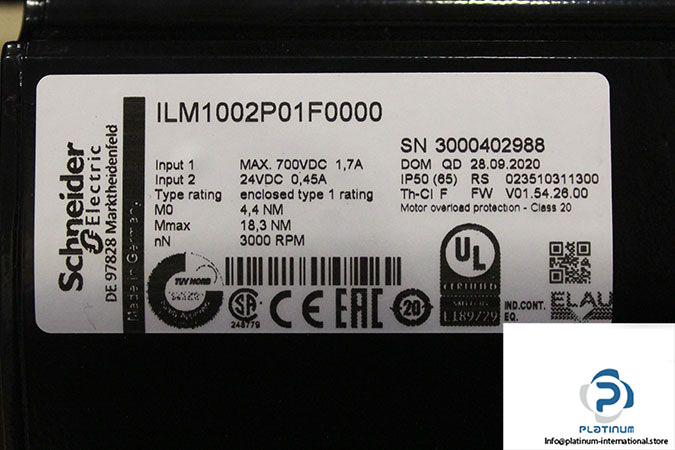

Model: ILM1002P01F0000

Continuous Stall Torque [Nm]: 2.9

Peak Stall Torque [Nm]: 18.3

Nominal Torque [Nm]: 1.15

Max Current [A]: 13.1

Rated Current [A]: 2

Max Supply Voltage [VDC]: 700 at 1.7 A

Supply Voltage [VDC]: 24 at 0.45 A

Nominal Output Power [W]: 910

Nominal Speed [rpm]: 3000

Number of Poles: 8

Holding Torque [Nm]: 5.5 Holding Brake

flange Size [mm]: 100

Shaft Diameter [mm]: 19

Shaft Length [mm]: 40

Key Width [mm]: 30

Protection Class [IP]: 54

Thermal Class: F

Weight [kg]: 7.07
