Schneider ILS1F572PC1A0 Integrated Drive ILS With Stepper Motor

Name: SCHNEIDER ILS1F572PC1A0 INTEGRATED DRIVE ILS WITH STEPPER MOTOR
SKU: 978501
Price: 322.22 USD
Availability: LimitedAvailability

schneider-ils1f572pc1a0-integrated-drive-ils-with-stepper-motor-1

schneider-ils1f572pc1a0-integrated-drive-ils-with-stepper-motor-2

schneider-ils1f572pc1a0-integrated-drive-ils-with-stepper-motor-3

Used

Available on request

322,22$

Manufacturer

SCHNEIDER

SKU

978501

Category

Servo Motors

Condition

Used

Drive Electric ILS Integrated Lexium motor Phase Schneider Servo Single Stepper With

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

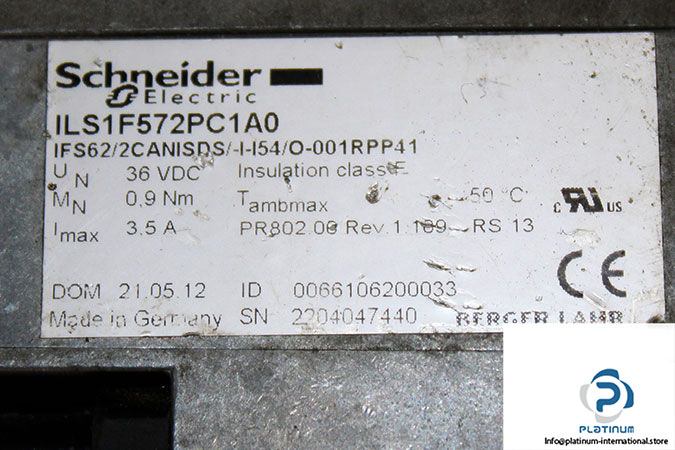

Manufacturer: ELAU – Schneider Electric / Berger Lahr

Type: Integrated Drive ILS with Stepper Motor

Model: ILS1F572PC1A0

ID No: 0066106200033

MRN: IFS62/2CANISDS/-I-I54/O-001RPP41

Rated Voltage: 36 VDC

Max. Current: 3.5 A

Rated Speed: 600 Revolution Per Minute (rpm)

Max. Speed: 3000 Revolution Per Minute (rpm)

Rated Torque: 0.9 Nm

Stall Torque: 0.9 Nm

Number of Motor Poles: 6

Holding Brake: Without

Max. Temperature: 50 °C

Length Motor: 115.9 mm

Shaft Diameter: 6.35 mm

Shaft Length: 21 mm

Motor Flange Size: 57 mm

Insulation Class: F

Protection Class: IP54

Weight: 1.52 kg
