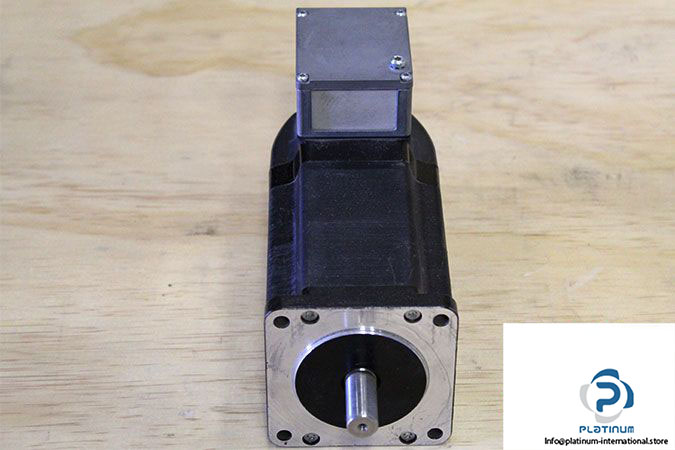

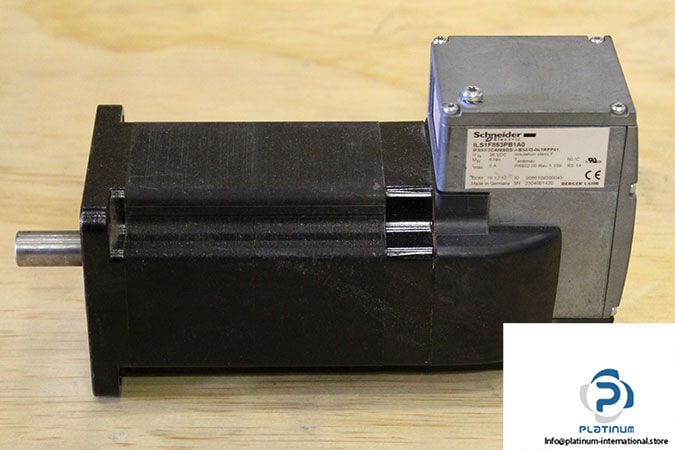

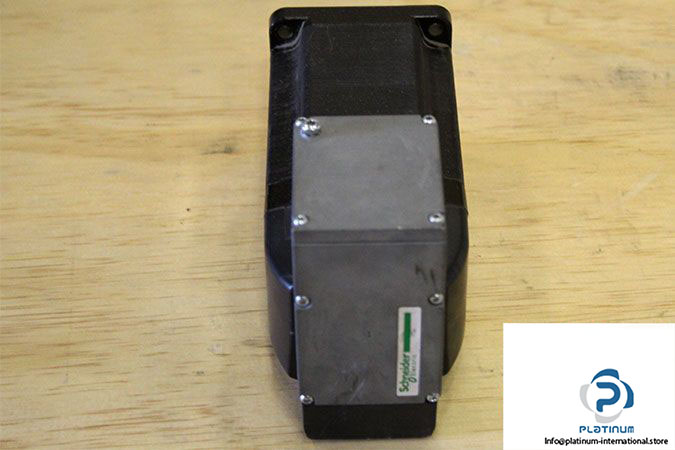

Schneider Electric ILS1F853PB1A0 Integrated Drive ILS With Stepper Motor

Manufacturer: ELAU – SCHNEIDER

Type: INTEGRATED DRIVE ILA WITH SERVO MOTOR

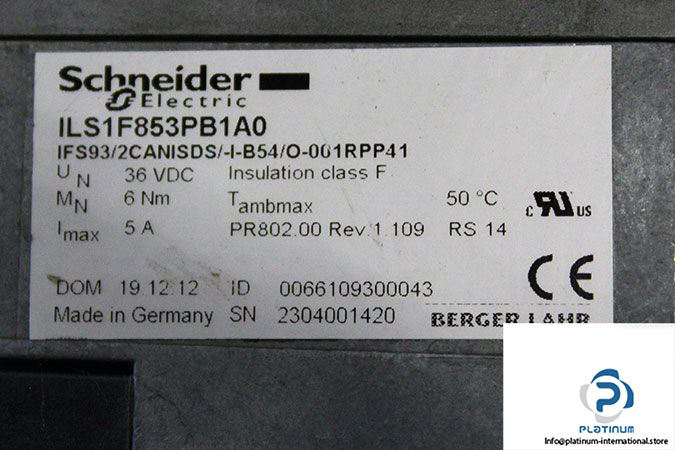

Model: ILS1F853PB1A0

ID No: 0066109300043

MRN: IFS93/2CANISDS/-I-B54/O-001RPP41

Rated Voltage (^UN): 36 VDC

Max. Current (^Imax): 5 A

Nominal Speed (ⁿN): 120 Revolution Per Minute (rpm)

Nominal Torque: 6 Nm

Holding Torque: 6 Nm

Temperature: 50 °C

Flange Size: 85 mm

Motor Length: 200.6 mm

Shaft Diameter: 14 mm

Shaft Length: 30 mm

Insulation Class: F

Protection Class: IP41

Weight: 4.80 kg
