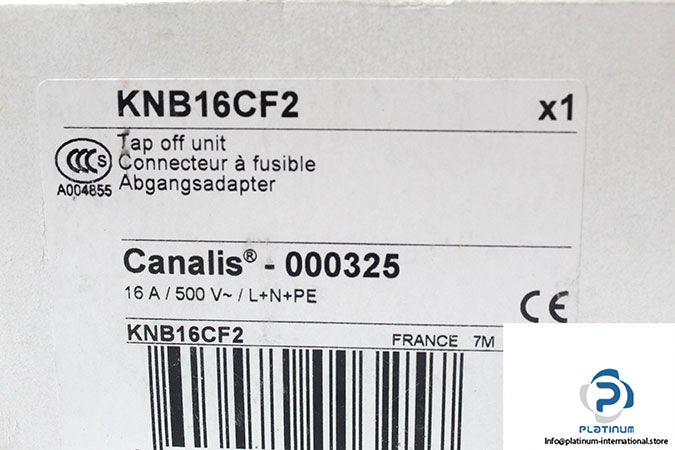

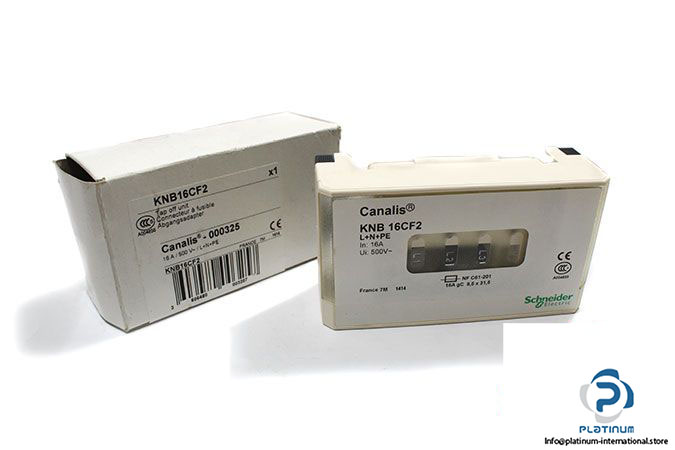

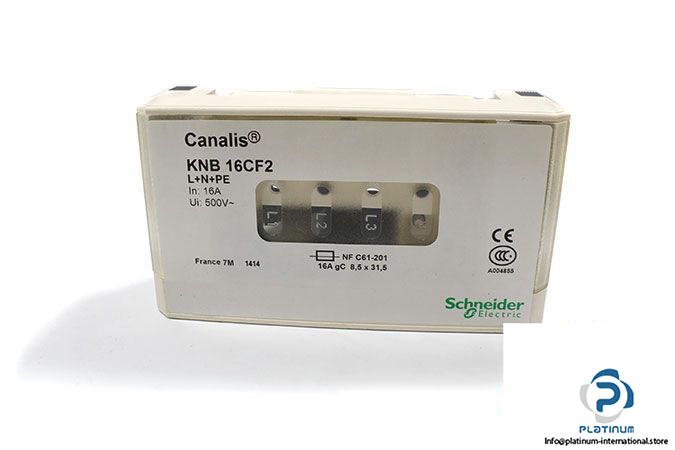

Schneider KNB16CF2 TAP OFF Unit

Manufacturer: SCHNEIDER ELECTRIC

Type: Tap Off Unit

Model: KNB16CF2

Device Application: Low power distribution

Rated Operational Current: 16 A

Rated Operational Voltage: 230 … 500 V

Rated Impulse Withstand Voltage: 4.6 kV

Mounting Mode: Plug-in with phase selection

Rated Insulation Voltage: 500 V

Electrical Connection:

Cable clamp terminal 4 mm² flexible

Cable clamp terminal 6 mm² rigid

Tap-Off Unit Polarity: L + N + PE

Dimensions ( height x width x depth ): 72 x 50 x 172 mm

Frequency: 50/60 Hz

IP degree of protection: IP55

Weight: 0.20 kg
