In stock3 unitsReady to ship

Contactor

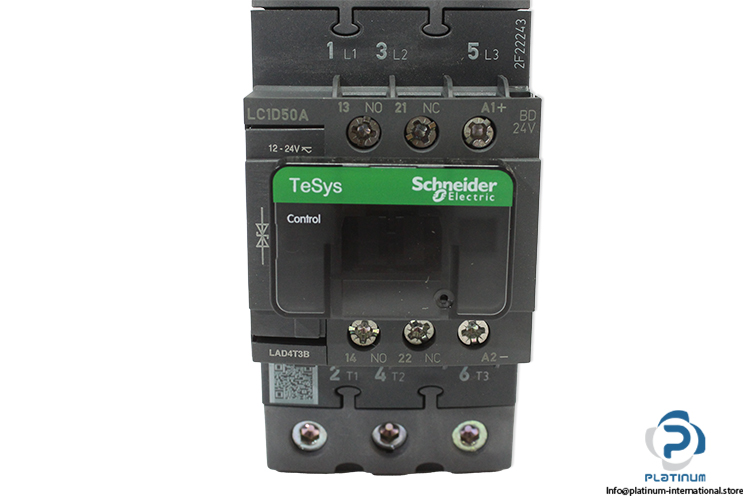

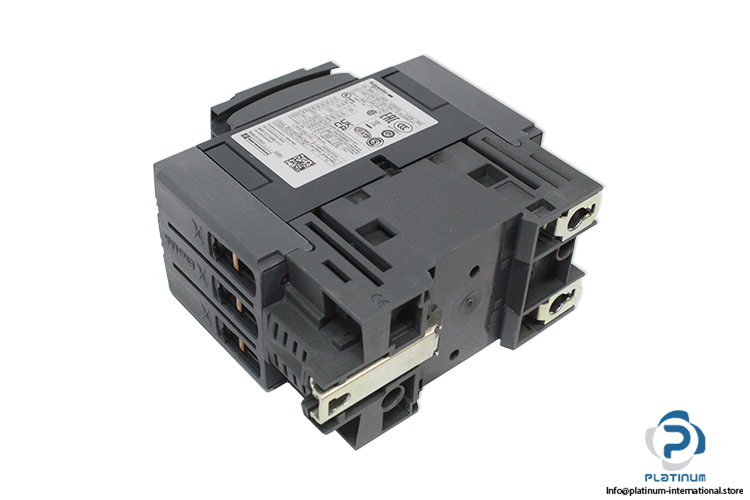

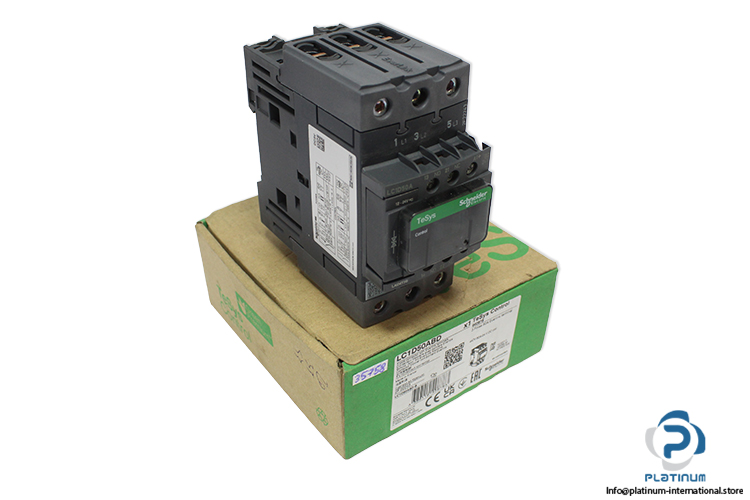

Schneider Electric LC1D50ABD 3-pole contactor from TeSys Deca range with 24 V DC control, up to 690 V AC operational voltage, and high motor control performance for industrial applications.

Manufacturer
SCHNEIDER
SKU
1095653
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.940878
Serial No.3 389119 408783
Code2F 22243 / LC1D50ABD-B
RangeTeSys, TeSys Deca
Product RangeTeSys Deca
Device Short NameLC1D
Contactor ApplicationResistive Load, Motor Control
Poles Description3P
Pole Contact Composition3 NO
Auxiliary Contact Composition1 NO + 1 NC
Compatibility CodeLC1D
Protective CoverWith
Motor Power (kW)15 kW at 220/230 V AC 50/60 Hz (AC-3), 22 kW at 380/400 V AC 50/60 Hz (AC-3)
Motor Power (hp)40 hp at 460/480 V AC 50/60 Hz for 3-phase motors, 40 hp at 575/600 V AC 50/60 Hz for 3-phase motors
[Ith] Conventional Free Air Thermal Current10 A at 60 °C for signalling circuit, 80 A at 60 °C for power circuit
Irms Rated Making Capacity140 A AC for signalling circuit (IEC 60947-5-1), 250 A DC for signalling circuit (IEC 60947-5-1), 900 A at 440 V for power circuit (IEC 60947)
Rated Breaking Capacity900 A at 440 V for power circuit (IEC 60947)
Safety Reliability LevelB10d = 1,369,863 cycles (EN/ISO 13849-1, nominal load)/ B10d = 20,000,000 cycles (EN/ISO 13849-1, mechanical load)
Operating Time50 ±15 % ms closing, 16...24 ms opening
Power Circuit690 V AC 25...400 Hz/300 V DC
[Uc] Control Circuit Voltage24 V DC
Power Circuit 1600 V CSA Certified
Power Circuit 2600 V UL Certified
Power Circuit 3690 V (IEC 60947-4-1)
Signalling Circuit690 V (IEC 60947-1)
Signalling Circuit600 V CSA Certified
Signalling Circuit600 V UL Certified
Overvoltage CategoryIII
Pollution Degree3
[Uimp] Rated Impulse Withstand Voltage6 kV (IEC 60947)
Inrush Power19 W at 20 °C
Hold-In Power Consumption7.4 W at 20 °C
Time Constant34 ms
Maximum Operating Rate3600 cycles/hour at 60 °C
Operating Altitude0...3000 m
Height122 mm
Width55 mm
Depth120 mm
ConditionNew
Stock KeyJO-004
