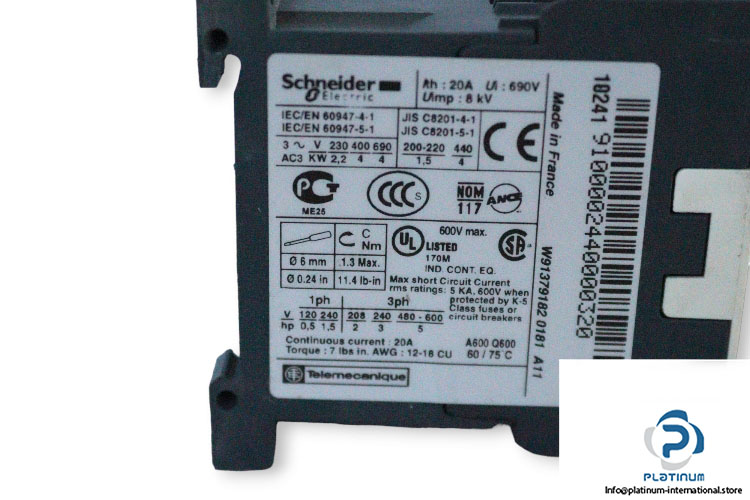

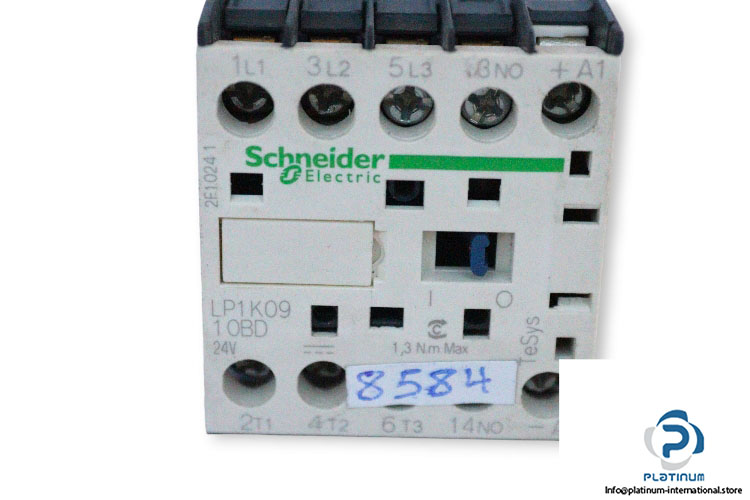

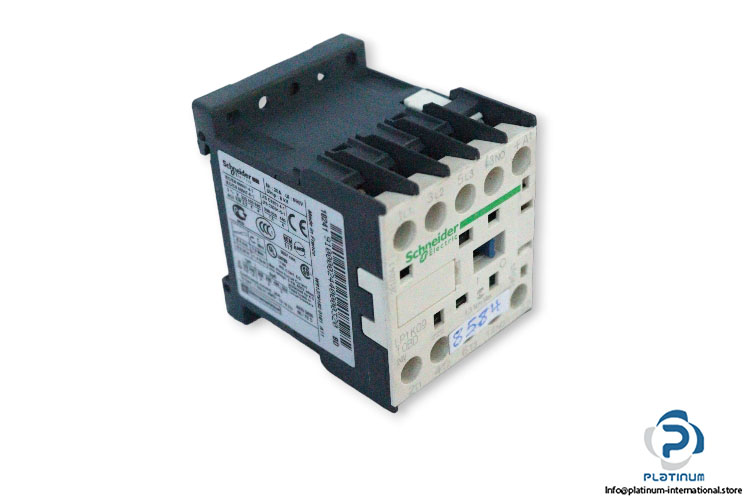

Schneider LP1K0910BD Contactor

Manufacturer: SCHNEIDER
Type: Contactor
Model: LP1K0910BD

Poles: 3P
power pole contact composition: 3 NO
[Ue] rated operational voltage: 690 V AC
[Ie] rated operational current:
9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit
9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit
20 A (at <140 °F (60 °C)) at <= 690 V AC AC-1
for power circuit
[Uc] control circuit voltage: 24 V DC
Motor power kW:
4 kW 380…415 V AC 50/60 Hz AC-3
4 kW 440/690 V AC 50/60 Hz AC-3
4 kW 380…415 V AC 50/60 Hz AC-3e
4 kW 440/690 V AC 50/60 Hz AC-3e
4 kW 380…415 V AC 50/60 Hz AC-4
4 kW 440/690 V AC 50/60 Hz AC-4
Auxiliary contact composition: 1 NO
[Uimp] rated impulse withstand voltage: 8 kV
[Ui] rated insulation voltage: 600 V UL 508
Dimensions: 58 mm x 45 mm x 57 mm
