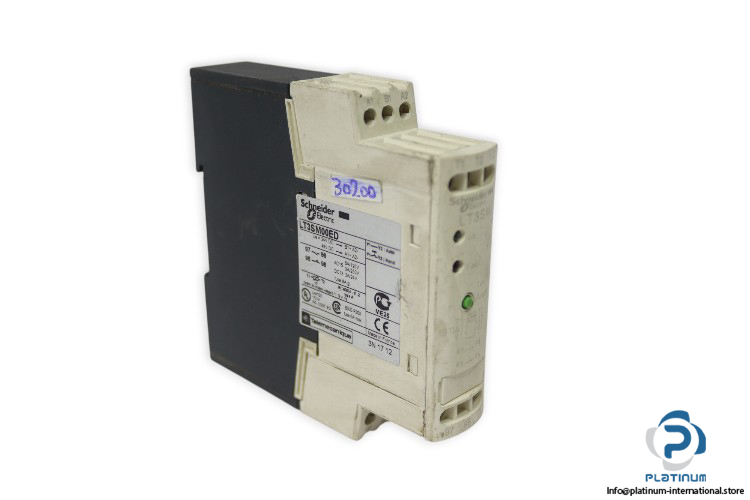

Schneider LT3SM00ED PTC Probe Relay
Used
In stock1 unitReady to ship
PTC PROBE RELAY
Schneider Telemecanique LT3SM00ED thermistor protection unit for PTC probe monitoring, 24 / 48 V DC control, manual reset, 1 NC + 1 NO contacts, EX protection, and compact 22.5 mm width.0660122.524“482525055006060034-11aACCcontacts.ControldcEXIECIthLT3LT3SELT3SMLT3SM00EDMManualNCNOProbeProtectionPTCRelayResetSchneiderSeriesTelemecaniqueThermistortoUEUiUnitVVDE
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SCHNEIDER TELEMECANIQUE LT3SM00ED PTC PROBE RELAY
Compact thermistor protection unit for precise PTC probe monitoring in motors and equipment. Offers manual reset, dual-voltage output relay, and robust insulation ratings in a slim 22.5 mm housing.
Manufacturer: SCHNEIDER TELEMECANIQUE
Type: PTC probe relay
Model: LT3SM00ED
SERIES: LT3
Height 100 mm Width 22.5 mm Depth 100 mm
| Range of product | LT3 |
| Device short name | LT3SE |
| Product or component type | Thermistor protection units |
| [Uc] control circuit voltage | 24...48 V DC |
| Reset | Manual |
| Control circuit voltage limits | 0.8...1.25 Uc |
| Contacts type and composition | 1 NC + 1 NO dual voltage |
| [Ith] conventional free air thermal current | 5 A for output control relay |
| [Ui] rated insulation voltage | 500 V AC output control relay |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz for output control relay |
| Standards | IEC 60034-11, VDE 0660 |
| Protection Proof | EX (explosion) |
| Ambient Temperature | -25...60 °C |
