In stock2 unitsReady to ship

139,99$

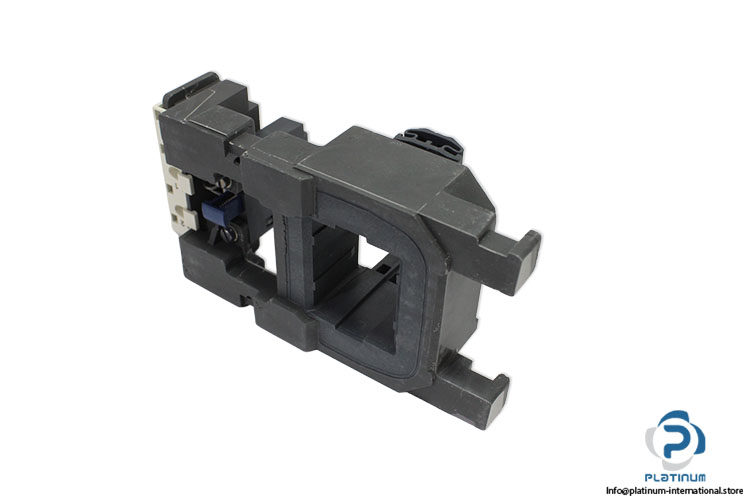

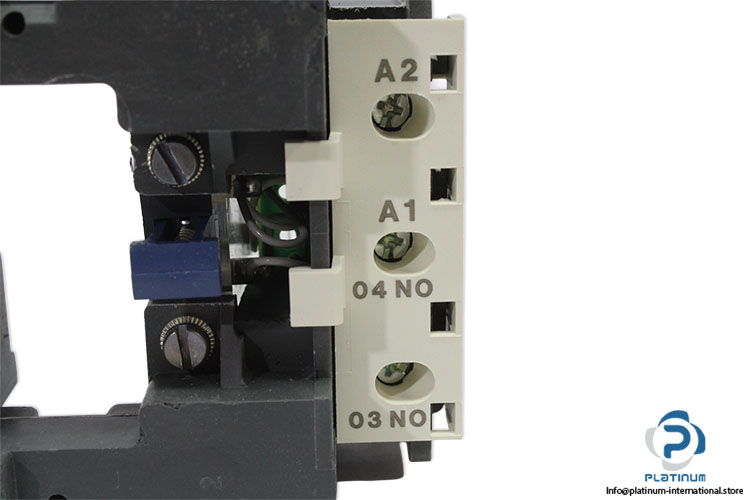

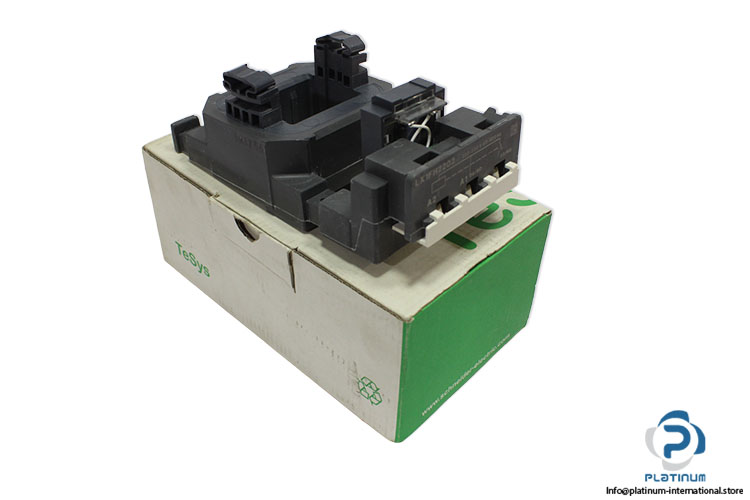

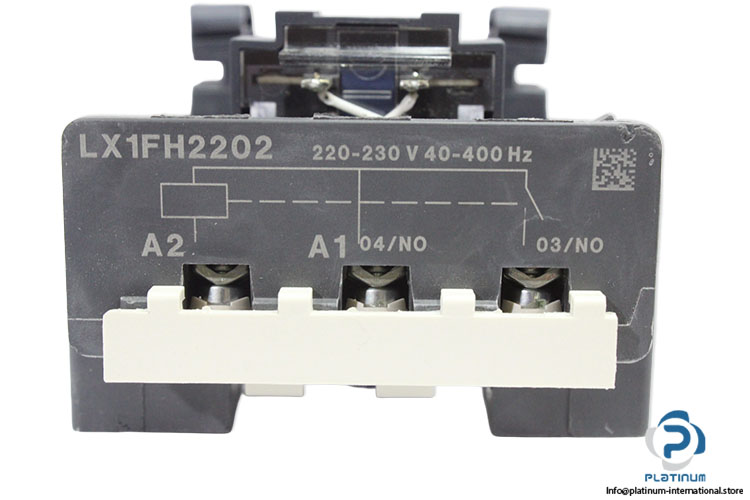

Schneider Electric LX1FH2202 Contactor Coil Industrial contactor coil designed for Schneider Electric TeSys F LC1F contactors, featuring 220…230 V AC operation, reliable switching performance, and compatibility with LC1F265 and LC1F330 contactors.

Manufacturer
SCHNEIDER
SKU
1099432
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SN3389110553352
Part No.TeSys - 055335
Code3R1736,LX1 FH2202AB
RangeTeSys
Product or Component TypeContactor coil
Device short nameLX1FH
Range compatibilityTeSys TeSys F LC1F contactor
Product CompatibilityLC1F265,LC1F330
Control circuit typeAC 40...400 Hz
[Uc] control circuit voltage220...230 V AC 40...400 Hz
Average resistance70.6 Ohm inrush 68 °F (20 °C),1578 Ohm holding 68 °F (20 °C)
Operating time100...170 ms opening,40...65 ms closing
Coil technologyWithout built-in suppressor module
Inrush power in VA650 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))
Hold-in power consumption in VA10 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation8 W 40...400 Hz
Ambient air temperature for operation-5…55 °C
Stock KeyCON003
ConditionNew
SKU1099432
Weight0,85
