Schneider LXM62DD45C21000 Servo Drive
Manufacturer: Elau Schneider Electric
Type: Servo Drive

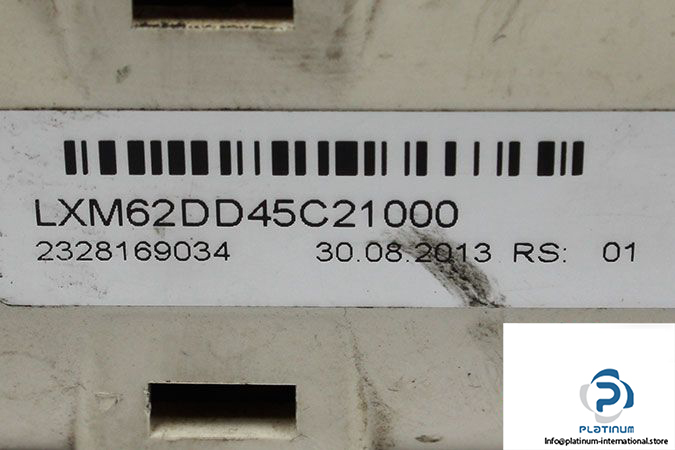

Model: LXM62DD45C21000 / LXM62DD45CXXXXX
MRN: 2328169034

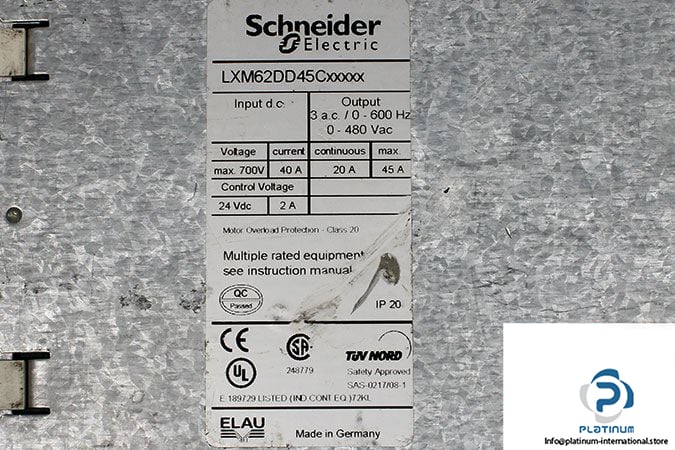

Input
Max. Voltage: 700 VDC
Current: 40 A
Control Voltage: 24 VDC / 2 A
Output
Voltage: 3 Phase 0…480 V AC
Current: 20 A
Frequency: 0…600 Hz
Power: 9.6 kW
Max. Current: 45 A
Protection Class: IP20
Ambient Temperature: 5…55 °C
Dimensions: 309 X 43 X 270 mm
Weight: 1.67 kg
