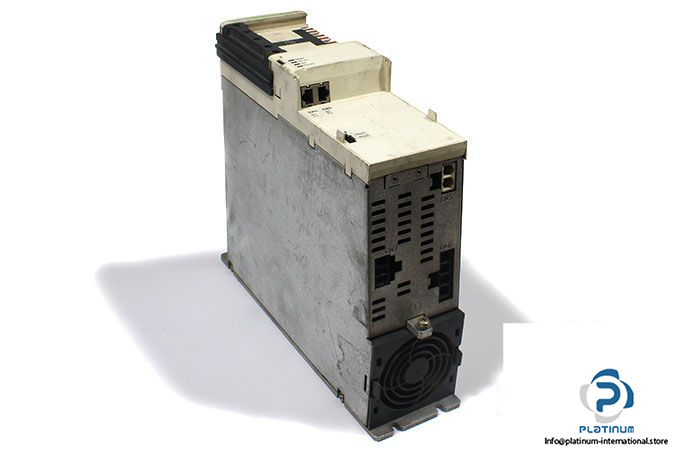

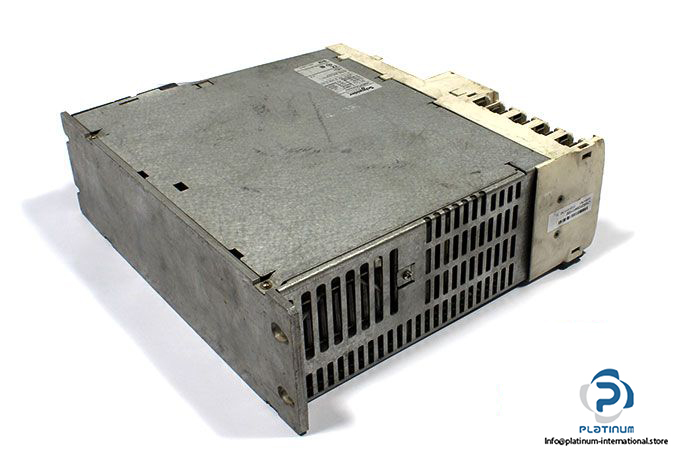

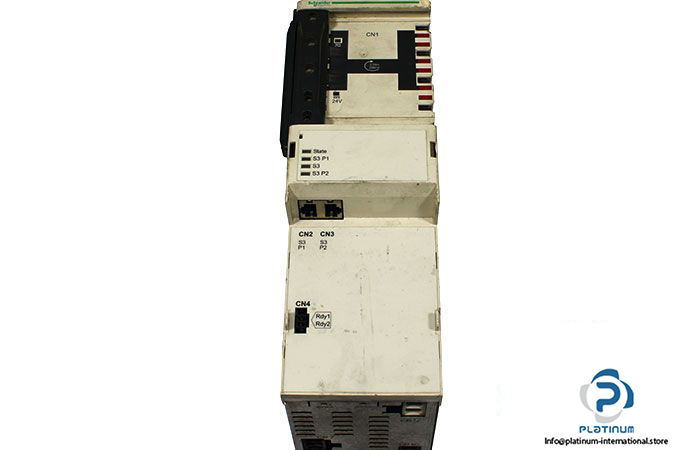

Schneider LXM62PD84A11000 Servo Drive
Manufacturer: Elau Schneider Electric
Type: Servo Drive

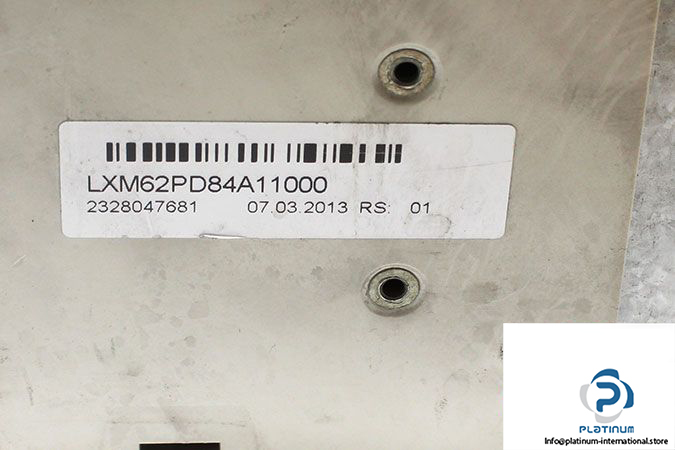

Model: LXM62PD84A11000 / LXM62PD84AXXXXX
MRN: 2328047681

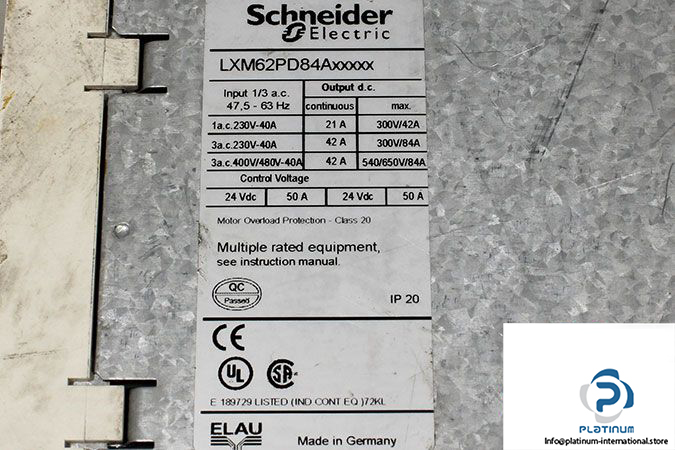

Input
Voltage
- Single Phase: 230 V AC
- 3 Phase: 230 / 400…480 V AC
Current: 40 A
Frequency: 47.5…63 Hz
Control Voltage: 24 VDC / 50 A
Output
Voltage
- Single Phase: 300 VDC
- 3 Phase: 300 / 540…650 VDC
Current
- Single Phase: 42 A
- 3 Phase: 84 A
Power: 22.1 kW
Protection Class: IP20
Ambient Temperature: 5…40 °C
Dimensions: 309 X 90 X 270 mm
Weight: 6.15 kg
